HWM reversible knives
Standard indexable knives - 4 cutting edges
(CMT790-04)

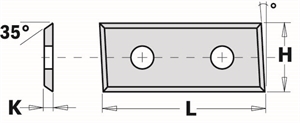

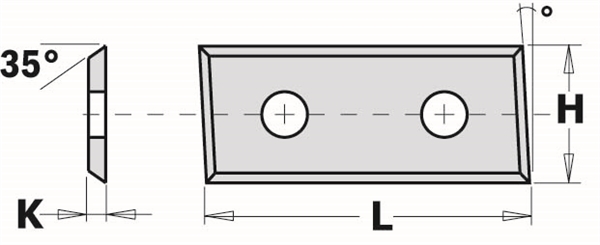

Dimensions in table refer to L (length) x H (height) x K (thickness).
F1730 Suitable for dry and wet softwood, dry and wet hardwood.
S2020 Suitable for dry and wet hardwood, chipboard and MDF.
U2300 Suitable for chipboard, MDF and HDF.
N2550 Suitable for chipboard, MDF, HDF and solid surface materials.
All knives supplied in 10-pc. cases.
| GRADE | HARDNESS | TRANSVERSE RUPTURE STRENGTH | ||
|---|---|---|---|---|
| HV10 | HRA | MPA | PSI | |
| (EU) | (USA) | (EU) | (USA) | |
| F1730 | 1730 | 92.5 | 2100 | 305.000 |
| S2020 | 2020 | 93.9 | 3700 | 536.500 |
| U2300 | 2300 | 95.2 | 3500 | 508.000 |
| N2550 | 2550 | / | 3200 | 464.000 |
| L | H | K | A | Code | |
|---|---|---|---|---|---|
| 28.3 | 12 | 1.5 | 35° | F1730 | CMT79028312 |
| 48.3 | 12 | 1.5 | 35° | F1730 | CMT79048312 |
Standard indexable knives - 4 cutting edges
(CMT790-08)

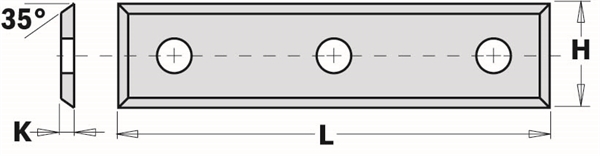

Dimensions in table refer to L (length) x H (height) x K (thickness).
F1730 Suitable for dry and wet softwood, dry and wet hardwood.
S2020 Suitable for dry and wet hardwood, chipboard and MDF.
U2300 Suitable for chipboard, MDF and HDF.
N2550 Suitable for chipboard, MDF, HDF and solid surface materials.
All knives supplied in 10-pc. cases.
| GRADE | HARDNESS | TRANSVERSE RUPTURE STRENGTH | ||
|---|---|---|---|---|
| HV10 | HRA | MPA | PSI | |
| (EU) | (USA) | (EU) | (USA) | |
| F1730 | 1730 | 92.5 | 2100 | 305.000 |
| S2020 | 2020 | 93.9 | 3700 | 536.500 |
| U2300 | 2300 | 95.2 | 3500 | 508.000 |
| N2550 | 2550 | / | 3200 | 464.000 |
| L | H | K | A | Code | |
|---|---|---|---|---|---|
| 50 | 9 | 1.5 | 35° | F1730 | CMT79050009 |
