Tool holders for universal knives and set

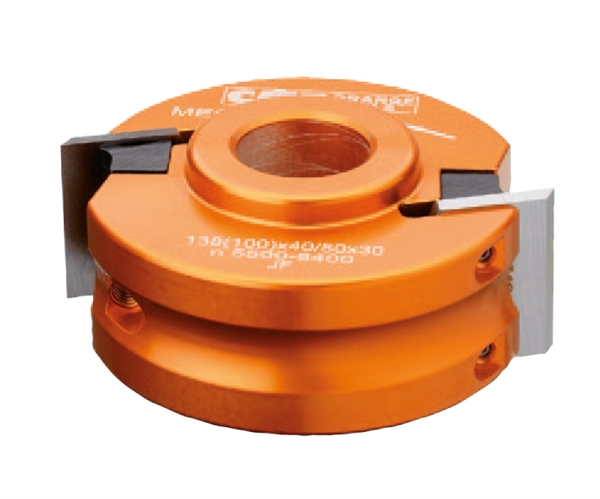

Cutter heads without limiters

(CMT692)

CMT cutter heads guarantee excellent performance for all your projects. For use on all types of moulder and spindle moulder machines.

TECHNICAL DETAILS:
- Hard aluminium or steel alloy cutter head without limiters, highly resistant to tensile and yield stress.
- Pair of universal straight knives.
- Tools for mechanical feed (MEC).

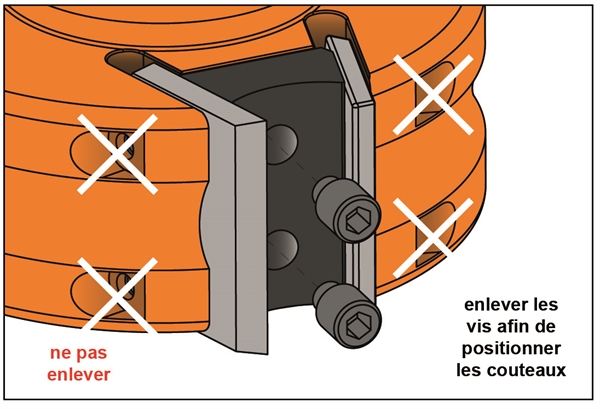

- Pins for the automatic positioning of the knives.
- Possibility to use knives with a height of 40mm (1-37/64") or 50mm (1-31/32") (order no. 690).
Supplied in a solid plastic box to contain up to 12 couples of knives.
For safety reasons we recommend using knives with a height of 40mm (1-37/64") on cutter heads 692.078.19 and 692.078.30.

Ø	H	d	RPM	Code
78	40	19.05	7000-9000	Aluminium body	CMT69207819
78	40	30	7000-9000	Aluminium body	CMT69207830
100	40-50	25.4	5500-8400	Aluminium body	CMT69210026
100	40-50	30	5500-8400	Steel body	CMT69210130
100	40-50	30	5500-8400	Aluminium body	CMT69210030
100	40-50	31.75	5500-8400	Aluminium body	CMT69210031
100	40-50	35	5500-8400	Steel body	CMT69210135
100	40-50	35	5500-8400	Aluminium body	CMT69210035
120	40-50	50	4800-7400	Steel body	CMT69212150
120	40-50	50	4800-7400	Aluminium body	CMT69212050

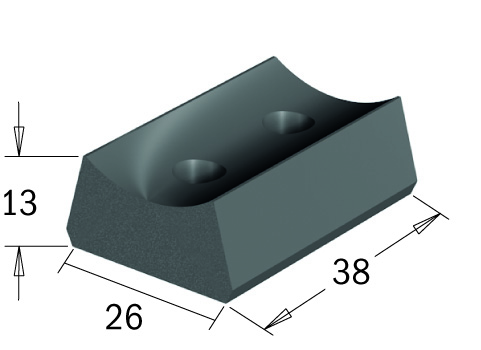

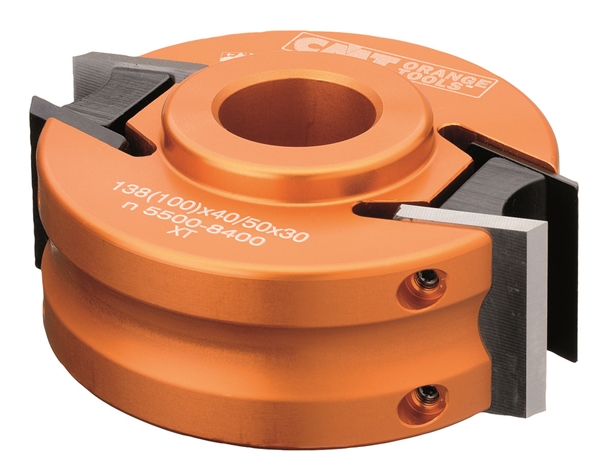

Cutter heads with limiters

(CMT693-1)

CMT cutter heads guarantee perfect executions of all your projects and have been designed to comply with the European Normative EN 847-1. For use on all types of moulder and spindle moulder machines.
Made in compliance with European Regulation EN 847-1

TECHNICAL DETAILS :
- Hard aluminium or steel alloy cutter head without limiters, highly resistant to tensile and yield stress.
- Pair of universal straight knives.
- Tools for manual feed (MAN).
- Pins for the automatic positioning of the knives.
- Possibility to use knives with a height of 40mm (1-37/64") or 50mm (1-31/32") (order no. 690) and limiters (order no. 691).
Supplied in a solid plastic box to contain up to 12 couples of knives.

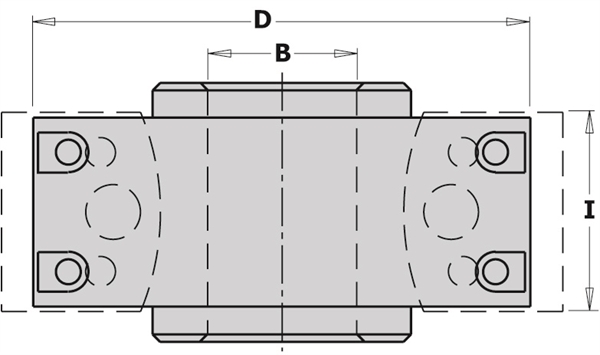

D	l	B	RPM	Code
78	40	30	7000-9000	Steel body	CMT69307830
100	40-50	30	5500-8400	Steel body	CMT69310130
100	40-50	30	5500-8400	Aluminium body	CMT69310030
100	40-50	31.75	5500-8400	Aluminium body	CMT69310031
100	40-50	35	5500-8400	Steel body	CMT69310135
100	40-50	35	5500-8400	Aluminium body	CMT69310035
120	40-50	50	4800-7400	Steel body	CMT69312150
120	40-50	50	4800-7400	Aluminium body	CMT69312050

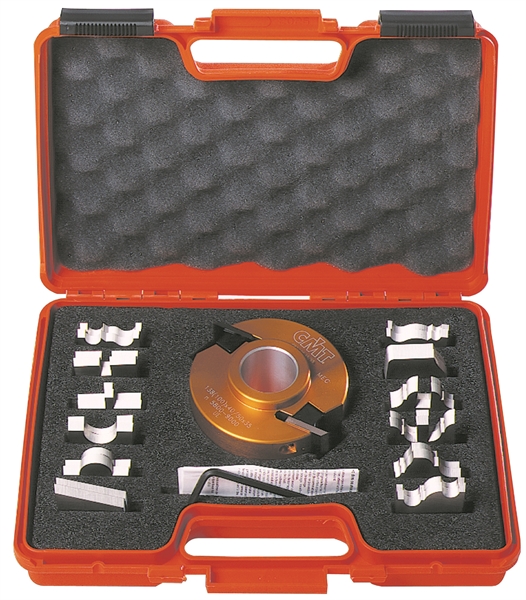

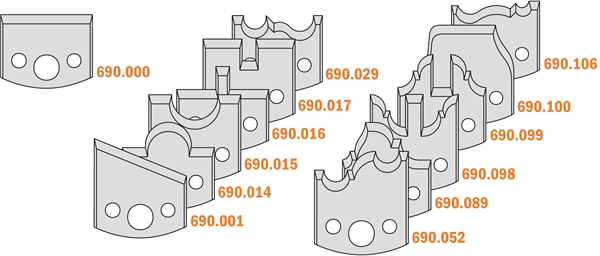

13 piece multiprofile cutter head sets without limiters

(CMT692-1)

These sets are ideal for the professional woodworker for making joints and frames and include 3 essential profiles to produce kitchen doors. The cutter heads included in the sets allow the insertion of knives with a height of either 40mm (1-37/64") or 50mm (1-31/32"). Both cutter heads and knives are stored in solid plastic cases to prevent damage.
These sets include :
- 1 cutter head in hard aluminium alloy with pins for the automatic positioning of the knives.
- 13 pairs of knives with a cutting height of 40mm (1-37/64").

D	l	B	RPM	Code
78	40	19.05	7000-9000	CMT69201309
78	40	30	7000-9000	CMT69201301
100	40	25.4	5500-8400	CMT69201310
100	40	30	5500-8400	CMT69201302
100	40	31.75	5500-8400	CMT69201311
100	40	35	5500-8400	CMT69201303
120	40	50	4800-7400	CMT69201304

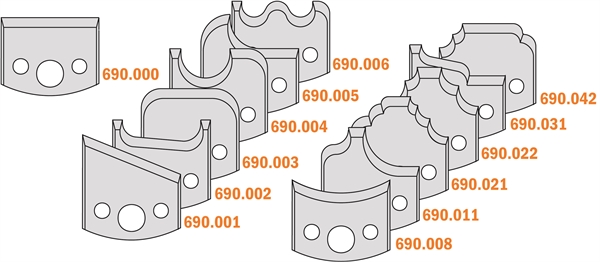

13 piece multiprofile cutter head sets without limiters

(CMT692-2)

D	l	B	RPM	Code
78	40	19.05	7000-9000	CMT69201312
78	40	30	7000-9000	CMT69201305
100	40	25.4	5500-8400	CMT69201313
100	40	30	5500-8400	CMT69201306
100	40	31.75	5500-8400	CMT69201314
100	40	35	5500-8400	CMT69201307
120	40	50	4800-7400	CMT69201308

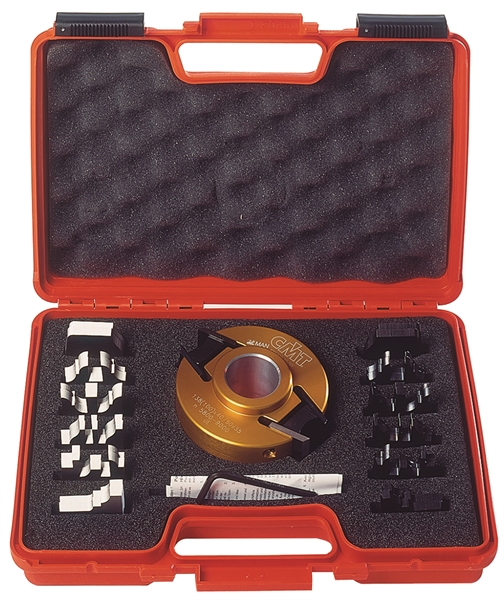

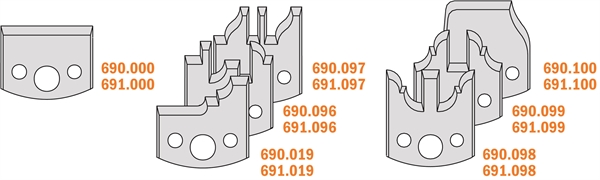

7 piece multiprofile cutter head sets with limiters

(CMT693-2)

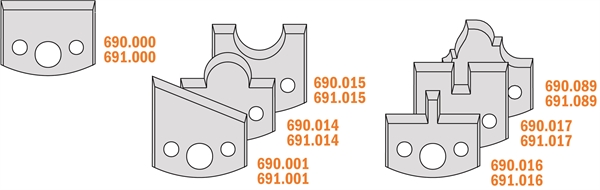

The professional woodworker has now the chance to make kitchen doors with a horizontal profile and male-and-female joints with two pairs of cutters. In fact, along with 7 profiled knives these sets also contain a specially designed cutter head that allows the insertion of knives with a height of either 40mm (1-37/64") or 50mm (1-31/32"), and safety limiters produced in compliance with the European normative EN 847-1. Both cutter head and knives are stored in solid plastic cases to prevent damage.
These sets include :
- 1 cutter head in hard aluminium alloy allowing the insertion of straight knives, limiters and pins for the automatic positioning of the knives.
- 7 pairs of knives with 40mm (1-37/64") of cutting.
- 7 pairs of relative limiters.

D	l	B	RPM	Code
100	40	30	5500-8400	CMT69301301
100	40	35	5500-8400	CMT69301302
120	40	50	4800-7400	CMT69301303

7 piece multiprofile cutter head sets with limiters

(CMT693-3)

CMT has designed these sets containing 7 profiled knives and a cutter head for making joints, frames and chamfers. The cutter heads allow the insertion of knives with a height of either 40mm or 50mm and safety limiters produced in compliance with the European normative EN 847-1. Both cutter head and knives are stored in solid plastic cases to prevent damage.
These sets include :
- 1 cutter head in hard aluminium alloy allowing the insertion of straight knives, limiters and pins for the automatic positioning of the knives.
- 7 pairs of knives with 40mm of cutting.
- 7 pairs of relative limiters.
