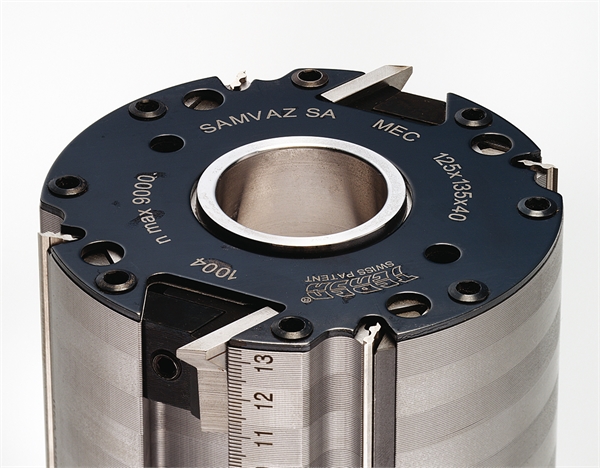

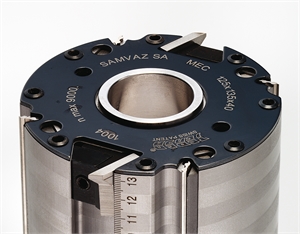

Tête de rabotage Tersa® R2000 PRO - Ø125 - Alésage 35

(TERSA_TEPO5-02)

Tersa® invente la tête intelligente ! Les deux têtes Tersa® (gauche et droite), la suite logique d'un concept de rabotage évolutif et perfomant, rabotage et profilage en un seul passage machine. Des résultats impressionnants et des économies en perspective.

Nombre de couteaux : 4+2
N/max : 9 000 tr/min
Avance : 36 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
125	60	65	35	4+2	3,771		TEPO125600002AL35
125	70	75	35	4+2	4,371		TEPO125700002AL35
125	80	85	35	4+2	4,970		TEPO125800002AL35
125	90	95	35	4+2	5,569		TEPO125900002AL35
125	100	105	35	4+2	6,168		TEPO1251000002AL35
125	110	115	35	4+2	6,765		TEPO1251100002AL35
125	115	120	35	4+2	7,066		TEPO1251150002AL35
125	120	125	35	4+2	7,367		TEPO1251200002AL35
125	125	130	35	4+2	7,666		TEPO1251250002AL35
125	130	135	35	4+2	7,966		TEPO1251300002AL35
125	135	140	35	4+2	8,265		TEPO1251350002AL35
125	140	145	35	4+2	8,565		TEPO1251400002AL35
125	150	155	35	4+2	9,165		TEPO1251500002AL35
125	160	165	35	4+2	9,764		TEPO1251600002AL35
125	170	175	35	4+2	10,363		TEPO1251700002AL35
125	180	185	35	4+2		10,962	TEPO1251800002AL35
125	185	190	35	4+2		11,252	TEPO1251850002AL35
125	190	195	35	4+2		11,561	TEPO1251900002AL35
125	200	205	35	4+2		12,160	TEPO1252000002AL35
125	210	215	35	4+2		12,760	TEPO1252100002AL35
125	220	225	35	4+2		13,355	TEPO1252200002AL35
125	225	230	35	4+2		13,657	TEPO1252250002AL35
125	230	235	35	4+2		13,958	TEPO1252300003AL35
125	235	240	35	4+2		14,258	TEPO1252350002AL35
125	240	245	35	4+2		14,557	TEPO1252400003AL35
125	250	255	35	4+2		15,156	TEPO1252500001AL35
125	260	265	35	4+2		16,130	TEPO1252600002AL35
125	270	275	35	4+2		16,355	TEPO1252700002AL35
125	280	285	35	4+2		16,954	TEPO1252800002AL35
125	290	295	35	4+2		17,553	TEPO1252900002AL35

Tête de rabotage Tersa® R2000 PRO - Ø125 - Alésage 30

(TERSA_TEPO5-01)

Nombre de couteaux : 4+2
N/max : 9 000 tr/min
Avance : 36 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
125	60	65	30	4+2	3,771		TEPO125600002AL30
125	70	75	30	4+2	4,371		TEPO125700002AL30
125	80	85	30	4+2	4,970		TEPO125800002AL30
125	90	95	30	4+2	5,569		TEPO125900002AL30
125	100	105	30	4+2	6,168		TEPO1251000002AL30
125	110	115	30	4+2	6,765		TEPO1251100002AL30
125	115	120	30	4+2	7,066		TEPO1251150002AL30
125	120	125	30	4+2	7,367		TEPO1251200002AL30
125	125	130	30	4+2	7,666		TEPO1251250002AL30
125	130	135	30	4+2	7,966		TEPO1251300002AL30
125	135	140	30	4+2	8,265		TEPO1251350002AL30
125	140	145	30	4+2	8,565		TEPO1251400002AL30
125	150	155	30	4+2	9,165		TEPO1251500002AL30
125	160	165	30	4+2	9,764		TEPO1251600002AL30
125	170	175	30	4+2	10,363		TEPO1251700002AL30
125	180	185	30	4+2		10,962	TEPO1251800002AL30
125	185	190	30	4+2		11,252	TEPO1251850002AL30
125	190	195	30	4+2		11,561	TEPO1251900002AL30
125	200	205	30	4+2		12,160	TEPO1252000002AL30
125	210	215	30	4+2		12,760	TEPO1252100002AL30
125	220	225	30	4+2		13,355	TEPO1252200002AL30
125	225	230	30	4+2		13,657	TEPO1252250002AL30
125	230	235	30	4+2		13,958	TEPO1252300003AL30
125	235	240	30	4+2		14,258	TEPO1252350002AL30
125	240	245	30	4+2		14,557	TEPO1252400003AL30
125	250	255	30	4+2		15,156	TEPO1252500001AL30
125	260	265	30	4+2		16,130	TEPO1252600002AL30
125	270	275	30	4+2		16,355	TEPO1252700002AL30
125	280	285	30	4+2		16,954	TEPO1252800002AL30
125	290	295	30	4+2		17,553	TEPO1252900002AL30

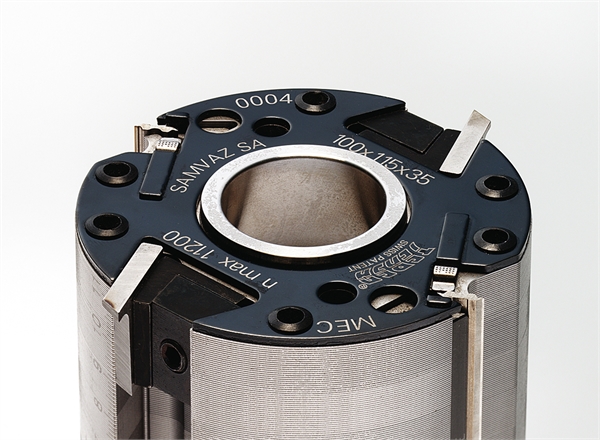

Tête de rabotage Tersa® R2000 PRO - Ø100 - Alésage 35

(TERSA_TEPO4-02)

Nombre de couteaux : 2+2
N/max : 11 200 tr/min
Avance : 24.2 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
100	60	65	35	2+2	2,455		TEPO100600002AL35
100	70	75	35	2+2	2,848		TEPO100700002AL35
100	80	85	35	2+2	3,241		TEPO100800002AL35
100	90	95	35	2+2	3,632		TEPO100900002AL35
100	100	105	35	2+2	4,025		TEPO1001000002AL35
100	110	115	35	2+2	4,417		TEPO1001100002AL35
100	115	120	35	2+2	4,629		TEPO1001150001AL35
100	120	125	35	2+2	4,810		TEPO1001200002AL35
100	130	135	35	2+2	5,202		TEPO1001300002AL35
100	135	140	35	2+2	5,398		TEPO1001350002AL35
100	140	145	35	2+2	5,595		TEPO1001400002AL35
100	150	155	35	2+2	5,987		TEPO1001500002AL35
100	160	165	35	2+2	6,379		TEPO1001600002AL35
100	170	175	35	2+2	6,769		TEPO1001700002AL35
100	180	185	35	2+2		7,163	TEPO1001800002AL35
100	185	190	35	2+2		7,359	TEPO1001850002AL35
100	190	195	35	2+2		7,555	TEPO1001900002AL35
100	200	205	35	2+2		7,947	TEPO1002000002AL35
100	210	215	35	2+2		8,340	TEPO1002100002AL35
100	220	225	35	2+2		8,731	TEPO1002200002AL35
100	225	230	35	2+2		8,928	TEPO1002250002AL35
100	230	235	35	2+2		9,124	TEPO1002300002AL35
100	240	245	35	2+2		9,517	TEPO1002400002AL35

Tête de rabotage Tersa® R2000 PRO - Ø100 - Alésage 30

(TERSA_TEPO4-01)

Nombre de couteaux : 2+2
N/max : 11 200 tr/min
Avance : 24.2 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
100	60	65	30	2+2	2,455		TEPO100600002AL30
100	70	75	30	2+2	2,848		TEPO100700002AL30
100	80	85	30	2+2	3,241		TEPO100800002AL30
100	90	95	30	2+2	3,632		TEPO100900002AL30
100	100	105	30	2+2	4,025		TEPO1001000002AL30
100	110	115	30	2+2	4,417		TEPO1001100002AL30
100	115	120	30	2+2	4,629		TEPO1001150001AL30
100	120	125	30	2+2	4,810		TEPO1001200002AL30
100	125	130	30	2+2	5,005		TEPO1001250002AL30
100	130	135	30	2+2	5,202		TEPO1001300002AL30
100	135	140	30	2+2	5,398		TEPO1001350002AL30
100	140	145	30	2+2	5,595		TEPO1001400002AL30
100	150	155	30	2+2	5,987		TEPO1001500002AL30
100	160	165	30	2+2	6,379		TEPO1001600002AL30
100	170	175	30	2+2	6,769		TEPO1001700002AL30
100	180	185	30	2+2		7,163	TEPO1001800002AL30
100	185	190	30	2+2		7,359	TEPO1001850002AL30
100	190	195	30	2+2		7,555	TEPO1001900002AL30
100	200	205	30	2+2		7,947	TEPO1002000002AL30
100	210	215	30	2+2		8,340	TEPO1002100002AL30
100	220	225	30	2+2		8,731	TEPO1002200002AL30
100	225	230	30	2+2		8,928	TEPO1002250002AL30
100	230	235	30	2+2		9,124	TEPO1002300002AL30
100	235	240	30	2+2		9,320	TEPO1002350002AL30
100	240	245	30	2+2		9,517	TEPO1002400002AL30

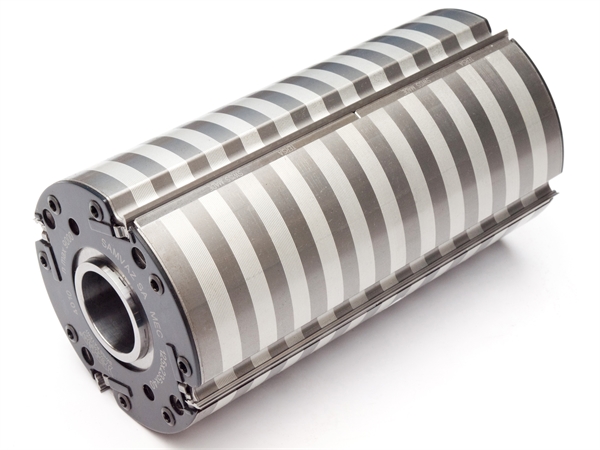

Tête de rabotage Tersa® R2000 - Ø140 - Alésage 50

(TERSA_TEPO3-03)

Tersa® R2000, la tête de rabotage à blocage centrifuge. Un concept performant et ayant fait ses preuves. Un outil adaptable à toutes les machines. Pour un rabotage «longue durée» incroyablement efficace, apprécié par tous les professionnels du bois.

Nombre de couteaux : 4
N/max : 8 300 tr/min
Avance : 32 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
140	60	65	50	4	4,998		TEPO140600001AL50
140	70	75	50	4	5,794		TEPO140700001AL50
140	80	85	50	4	6,591		TEPO140800001AL50
140	90	95	50	4	7,388		TEPO140900001AL50
140	100	105	50	4	8,184		TEPO1401000001AL50
140	110	115	50	4	8,892		TEPO1401100001AL50
140	115	120	50	4	9,380		TEPO1401150001AL50
140	120	125	50	4	9,779		TEPO1401200001AL50
140	125	130	50	4	10,177		TEPO1401250001AL50
140	130	135	50	4	10,575		TEPO1401300001AL50
140	135	140	50	4	10,974		TEPO1401350001AL50
140	140	145	50	4	11,372		TEPO1401400001AL50
140	150	155	50	4	12,169		TEPO1401500001AL50
140	160	165	50	4	12,966		TEPO1401600001AL50
140	170	175	50	4	13,759		TEPO1401700001AL50
140	180	185	50	4		10,421	TEPO1401800001AL50
140	185	190	50	4		10,702	TEPO1401850001AL50
140	190	195	50	4		10,983	TEPO1401900001AL50
140	200	205	50	4		11,528	TEPO1402000001AL50
140	210	215	50	4		12,083	TEPO1402100001AL50
140	220	225	50	4		12,644	TEPO1402200001AL50
140	225	230	50	4		12,934	TEPO1402250001AL50
140	230	235	50	4		13,225	TEPO1402300001AL50
140	235	240	50	4		13,483	TEPO1402350001AL50
140	240	245	50	4		13,742	TEPO1402400001AL50
140	250	255	50	4		14,259	TEPO1402500001AL50
140	260	265	50	4		14,776	TEPO1402600001AL50
140	270	275	50	4		15,293	TEPO1402700001AL50
140	280	285	50	4		15,810	TEPO1402800001AL50
140	290	295	50	4		16,326	TEPO1402900001AL50
140	310	315	50	4		17,360	TEPO1403100001AL50
140	320	325	50	4		17,877	TEPO1403200001AL50

Tête de rabotage Tersa® R2000 - Ø140 - Alésage 45

(TERSA_TEPO3-02)

Nombre de couteaux : 4
N/max : 8 300 tr/min
Avance : 32 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
140	60	65	45	4	4,998		TEPO140600001AL45
140	70	75	45	4	5,794		TEPO140700001AL45
140	80	85	45	4	6,591		TEPO140800001AL45
140	90	95	45	4	7,388		TEPO140900001AL45
140	100	105	45	4	8,184		TEPO1401000001AL45
140	110	115	45	4	8,892		TEPO1401100001AL45
140	115	120	45	4	9,380		TEPO1401150001AL45
140	120	125	45	4	9,779		TEPO1401200001AL45
140	125	130	45	4	10,177		TEPO1401250001AL45
140	130	135	45	4	10,575		TEPO1401300001AL45
140	135	140	45	4	10,974		TEPO1401350001AL45
140	140	145	45	4	11,372		TEPO1401400001AL45
140	150	155	45	4	12,169		TEPO1401500001AL45
140	160	165	45	4	12,966		TEPO1401600001AL45
140	170	175	45	4	13,759		TEPO1401700001AL45
140	180	185	45	4		10,421	TEPO1401800001AL45
140	185	190	45	4		10,702	TEPO1401850001AL45
140	190	195	45	4		10,983	TEPO1401900001AL45
140	200	205	45	4		11,528	TEPO1402000001AL45
140	210	215	45	4		12,083	TEPO1402100001AL45
140	220	225	45	4		12,644	TEPO1402200001AL45
140	225	230	45	4		12,934	TEPO1402250001AL45
140	230	235	45	4		13,225	TEPO1402300001AL45
140	235	240	45	4		13,483	TEPO1402350001AL45
140	240	245	45	4		13,742	TEPO1402400001AL45
140	250	255	45	4		14,259	TEPO1402500001AL45
140	260	265	45	4		14,776	TEPO1402600001AL45
140	270	275	45	4		15,293	TEPO1402700001AL45
140	280	285	45	4		15,810	TEPO1402800001AL45
140	290	295	45	4		16,326	TEPO1402900001AL45
140	300	305	45	4		16,843	TEPO1403000001AL45
140	310	315	45	4		17,360	TEPO1403100001AL45
140	320	325	45	4		17,877	TEPO1403200001AL45

Tête de rabotage Tersa® R2000 - Ø140 - Alésage 40

(TERSA_TEPO3-01)

Nombre de couteaux : 4
N/max : 8 300 tr/min
Avance : 32 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
140	60	65	40	4	4,998		TEPO140600001AL40
140	70	75	40	4	5,794		TEPO140700001AL40
140	80	85	40	4	6,591		TEPO140800001AL40
140	90	95	40	4	7,388		TEPO140900001AL40
140	100	105	40	4	8,184		TEPO1401000001AL40
140	110	115	40	4	8,892		TEPO1401100001AL40
140	115	120	40	4	9,380		TEPO1401150001AL40
140	120	125	40	4	9,779		TEPO1401200001AL40
140	125	130	40	4	10,177		TEPO1401250001AL40
140	130	135	40	4	10,575		TEPO1401300001AL40
140	135	140	40	4	10,974		TEPO1401350001AL40
140	140	145	40	4	11,372		TEPO1401400001AL40
140	150	155	40	4	12,169		TEPO1401500001AL40
140	160	165	40	4	12,966		TEPO1401600001AL40
140	170	175	40	4	13,759		TEPO1401700001AL40
140	180	185	40	4		10,421	TEPO1401800001AL40
140	185	190	40	4		10,702	TEPO1401850001AL40
140	190	195	40	4		10,983	TEPO1401900001AL40
140	200	205	40	4		11,528	TEPO1402000001AL40
140	210	215	40	4		12,083	TEPO1402100001AL40
140	220	225	40	4		12,644	TEPO1402200001AL40
140	225	230	40	4		12,934	TEPO1402250001AL40
140	230	235	40	4		13,225	TEPO1402300001AL40
140	235	240	40	4		13,483	TEPO1402350001AL40
140	240	245	40	4		13,742	TEPO1402400001AL40
140	250	255	40	4		14,259	TEPO1402500001AL40
140	260	265	40	4		14,776	TEPO1402600001AL40
140	270	275	40	4		15,293	TEPO1402700001AL40
140	280	285	40	4		15,810	TEPO1402800001AL40
140	290	295	40	4		16,326	TEPO1402900001AL40
140	300	305	40	4		16,843	TEPO1403000001AL40
140	310	315	40	4		17,360	TEPO1403100001AL40
140	320	325	40	4		17,877	TEPO1403200001AL40

Tête de rabotage Tersa® R2000 - Ø125 - Alésage 40

(TERSA_TEPO2-03)

Nombre de couteaux : 4
N/max : 9 000 tr/min
Avance : 36 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
125	60	65	40	4	3,771		TEPO125600001AL40
125	70	75	40	4	4,371		TEPO125700001AL40
125	80	85	40	4	4,970		TEPO125800001AL40
125	90	95	40	4	5,569		TEPO125900001AL40
125	100	105	40	4	6,168		TEPO1251000001AL40
125	110	115	40	4	6,765		TEPO1251100001AL40
125	115	120	40	4	7,066		TEPO1251150001AL40
125	120	125	40	4	7,367		TEPO1251200001AL40
125	125	130	40	4	7,666		TEPO1251250001AL40
125	130	135	40	4	7,966		TEPO1251300001AL40
125	135	105	40	4	8,265		TEPO1251350001AL40
125	140	145	40	4	8,565		TEPO1251400001AL40
125	150	155	40	4	9,165		TEPO1251500001AL40
125	160	165	40	4	9,764		TEPO1251600001AL40
125	180	185	40	4	7,987		TEPO1251800001AL40
125	185	190	40	4	8,197		TEPO1251850001AL40
125	190	195	40	4		8,408	TEPO1251900001AL40
125	200	205	40	4		8,874	TEPO1252000001AL40
125	210	215	40	4		9,249	TEPO1252100001AL40
125	220	225	40	4		9,669	TEPO1252200001AL40
125	225	230	40	4		9,906	TEPO1252250001AL40
125	230	235	40	4		9,955	TEPO1252300002AL40
125	250	255	40	4		10,942	TEPO1252500002AL40
125	260	265	40	4		11,375	TEPO1252600001AL40
125	270	275	40	4		11,808	TEPO1252700001AL40
125	280	285	40	4		12,240	TEPO1252800001AL40
125	290	295	40	4		12,673	TEPO1252900001AL40
125	300	305	40	4		13,106	TEPO1253000001AL40
125	310	315	40	4		13,539	TEPO1253100001AL40
125	320	325	40	4		13,972	TEPO1253200001AL40

Tête de rabotage Tersa® R2000 - Ø125 - Alésage 35

(TERSA_TEPO2-02)

Nombre de couteaux : 4
N/max : 9 000 tr/min
Avance : 36 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
125	60	65	35	4	3,771		TEPO125600001AL35
125	70	75	35	4	4,371		TEPO125700001AL35
125	80	85	35	4	4,970		TEPO125800001AL35
125	90	95	35	4	5,569		TEPO125900001AL35
125	100	105	35	4	6,168		TEPO1251000001AL35
125	110	115	35	4	6,765		TEPO1251100001AL35
125	115	120	35	4	7,066		TEPO1251150001AL35
125	120	125	35	4	7,367		TEPO1251200001AL35
125	125	130	35	4	7,666		TEPO1251250001AL35
125	130	135	35	4	7,966		TEPO1251300001AL35
125	135	140	35	4	8,265		TEPO1251350001AL35
125	140	145	35	4	8,565		TEPO1251400001AL35
125	150	155	35	4	9,165		TEPO1251500001AL35
125	160	165	35	4	9,764		TEPO1251600001AL35
125	170	175	35	4	10,363		TEPO1251700001AL35
125	180	185	35	4		7,987	TEPO1251800001AL35
125	185	190	35	4		8,197	TEPO1251850001AL35
125	190	195	35	4		8,408	TEPO1251900001AL35
125	200	205	35	4		8,874	TEPO1252000001AL35
125	210	215	35	4		9,249	TEPO1252100001AL35
125	220	225	35	4		9,669	TEPO1252200001AL35
125	225	230	35	4		9,906	TEPO1252250001AL35
125	230	235	35	4		9,955	TEPO1252300002AL35
125	235	240	35	4		10,327	TEPO1252350001AL35
125	240	245	35	4		10,511	TEPO1252400002AL35
125	250	255	35	4		10,942	TEPO1252500002AL35
125	260	265	35	4		11,375	TEPO1252600001AL35
125	270	275	35	4		11,808	TEPO1252700001AL35
125	280	285	35	4		12,240	TEPO1252800001AL35
125	290	295	35	4		12,673	TEPO1252900001AL35
125	300	305	35	4		13,106	TEPO1253000001AL35
125	310	315	35	4		13,539	TEPO1253100001AL35
125	320	325	35	4		13,972	TEPO1253200001AL35

Tête de rabotage Tersa® R2000 - Ø125 - Alésage 30

(TERSA_TEPO2-01)

Nombre de couteaux : 4
N/max : 9 000 tr/min
Avance : 36 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
125	60	65	30	4	3,771		TEPO125600001AL30
125	70	75	30	4	4,371		TEPO125700001AL30
125	80	85	30	4	4,970		TEPO125800001AL30
125	90	95	30	4	5,569		TEPO125900001AL30
125	100	105	30	4	6,168		TEPO1251000001AL30
125	110	115	30	4	6,765		TEPO1251100001AL30
125	115	120	30	4	7,066		TEPO1251150001AL30
125	120	125	30	4	7,367		TEPO1251200001AL30
125	125	130	30	4	7,666		TEPO1251250001AL30
125	130	135	30	4	7,966		TEPO1251300001AL30
125	135	140	30	4	8,265		TEPO1251350001AL30
125	140	145	30	4	8,565		TEPO1251400001AL30
125	150	155	30	4	9,165		TEPO1251500001AL30
125	160	165	30	4	9,764		TEPO1251600001AL30
125	170	175	30	4	10,363		TEPO1251700001AL30
125	180	185	30	4		7,987	TEPO1251800001AL30
125	185	190	30	4		8,197	TEPO1251850001AL30
125	190	195	30	4		8,408	TEPO1251900001AL30
125	200	205	30	4		8,874	TEPO1252000001AL30
125	210	215	30	4		9,249	TEPO1252100001AL30
125	220	225	30	4		9,669	TEPO1252200001AL30
125	225	230	30	4		9,906	TEPO1252250001AL30
125	230	235	30	4		9,955	TEPO1252300002AL30
125	235	240	30	4		10,327	TEPO1252350001AL30
125	240	245	30	4		10,511	TEPO1252400002AL30
125	250	255	30	4		10,942	TEPO1252500002AL30
125	260	265	30	4		11,375	TEPO1252600001AL30
125	270	275	30	4		11,808	TEPO1252700001AL30
125	280	285	30	4		12,240	TEPO1252800001AL30
125	290	295	30	4		12,673	TEPO1252900001AL30
125	300	305	30	4		13,106	TEPO1253000001AL30
125	310	315	30	4		13,539	TEPO1253100001AL30
125	320	325	30	4		13,972	TEPO1253200001AL30

Plus...

Tête de rabotage Tersa® R2000 - Ø100 - Alésage 35

(TERSA_TEPO1-02)

Nombre de couteaux : 4
N/max : 11 200 tr/min
Avance : 44.8 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
100	60	65	35	4	2,455		TEPO100600001AL35
100	70	75	35	4	2,848		TEPO100700001AL35
100	80	85	35	4	3,241		TEPO100800001AL35
100	90	95	35	4	3,632		TEPO100900001AL35
100	100	105	35	4	4,025		TEPO1001000001AL35
100	110	115	35	4	4,417		TEPO1001100001AL35
100	120	125	35	4	4,810		TEPO1001200001AL35
100	125	130	35	4	5,005		TEPO1001250001AL35
100	130	135	35	4	5,202		TEPO1001300001AL35
100	135	140	35	4	5,398		TEPO1001350001AL35
100	140	145	35	4	5,595		TEPO1001400001AL35
100	150	155	35	4	5,987		TEPO1001500001AL35
100	160	165	35	4	6,379		TEPO1001600001AL35
100	170	175	35	4	6,769		TEPO1001700001AL35
100	180	185	35	4		5,231	TEPO1001800001AL35
100	185	190	35	4		5,415	TEPO1001850001AL35
100	190	195	35	4		5,600	TEPO1001900001AL35
100	200	205	35	4		5,984	TEPO1002000001AL35
100	210	215	35	4		6,284	TEPO1002100001AL35
100	220	225	35	4		6,548	TEPO1002200001AL35
100	225	230	35	4		6,686	TEPO1002250001AL35
100	230	235	35	4		6,824	TEPO1002300001AL35
100	235	240	35	4		6,974	TEPO1002350001AL35
100	240	245	35	4		7,124	TEPO1002400001AL35

Tête de rabotage Tersa® R2000 - Ø100 - Alésage 30

(TERSA_TEPO1-01)

Nombre de couteaux : 4
N/max : 11 200 tr/min
Avance : 44.8 m/min

D	L coupe	LT tête	Al	Z	Acier (kg)	Allégée (kg)	Code
100	60	65	30	4	2,455		TEPO100600001AL30
100	70	75	30	4	2,848		TEPO100700001AL30
100	80	85	30	4	3,241		TEPO100800001AL30
100	90	95	30	4	3,632		TEPO100900001AL30
100	100	105	30	4	4,025		TEPO1001000001AL30
100	110	115	30	4	4,417		TEPO1001100001AL30
100	115	120	30	4	4,629		TEPO1001150002AL30
100	120	125	30	4	4,810		TEPO1001200001AL30
100	125	130	30	4	5,005		TEPO1001250001AL30
100	130	135	30	4	5,202		TEPO1001300001AL30
100	135	140	30	4	5,398		TEPO1001350001AL30
100	140	145	30	4	5,595		TEPO1001400001AL30
100	150	155	30	4	5,987		TEPO1001500001AL30
100	160	165	30	4	6,379		TEPO1001600001AL30
100	170	175	30	4	6,769		TEPO1001700001AL30
100	180	185	30	4		5,231	TEPO1001800001AL30
100	185	190	30	4		5,415	TEPO1001850001AL30
100	190	195	30	4		5,600	TEPO1001900001AL30
100	200	205	30	4		5,984	TEPO1002000001AL30
100	210	215	30	4		6,284	TEPO1002100001AL30
100	220	225	30	4		6,548	TEPO1002200001AL30
100	225	230	30	4		6,686	TEPO1002250001AL30
100	230	235	30	4		6,824	TEPO1002300001AL30
100	235	240	30	4		6,974	TEPO1002350001AL30
100	240	245	30	4		7,124	TEPO1002400001AL30

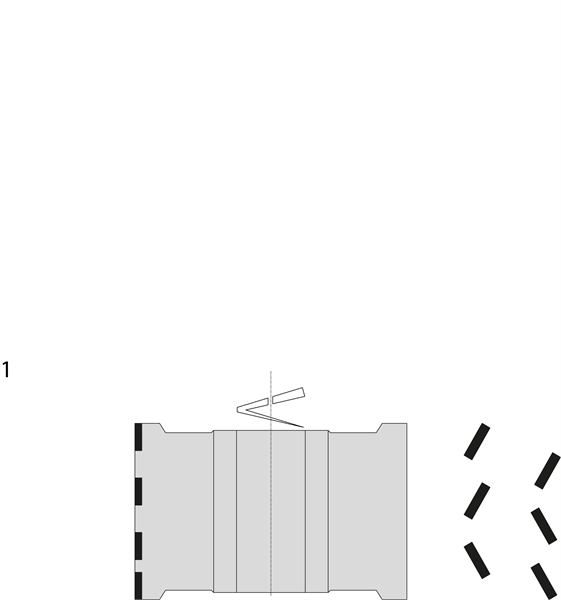

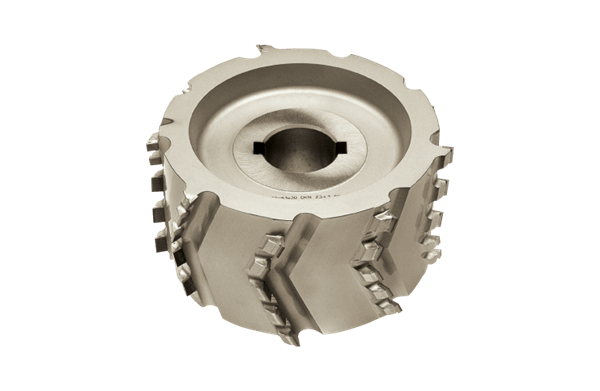

Calibreurs diamant pour plaqueuse de chants symétriques

(PCDIA-03)

Utilisation pour le dressage et calibrage de panneaux de particules et panneaux MDF sur calibreuse double ou plaqueuses de chants.

Profil	D	H	Al	Clavette	H corps	Z	H diamant	Rotation	Machine	Code
1	80	46	30	8X4	53	3+3	2.5	GAUCHE	BIESSE AKRON 400	DIAMCD8034601G
1	80	46	30	8X4	53	3+3	4	GAUCHE	BIESSE AKRON 400	DIAMCD8034602G
1	80	65	30	8X4	53	3+3	4	GAUCHE	BIESSE AKRON 400	DIAMCD8036504G
1	80	65	30	8X4	53	3+3	2.5	GAUCHE	BIESSE AKRON 400	DIAMCD8036503G
1	100	46	30	8X4	75	3+3	4	GAUCHE	BIESSE AKRON 600/800	DIAMCD10034608G
1	100	46	30	8X4	75	3+3	2.5	GAUCHE	BIESSE AKRON 600/800	DIAMCD10034607G
1	100	65	30	8X4	75	3+3	2.5	GAUCHE	BIESSE AKRON 600/800	DIAMCD10036505G
1	100	65	30	8X4	75	3+3	4	GAUCHE	BIESSE AKRON 600/800	DIAMCD10036506G
1	125	35	30	8X4	35	3+3	2.5	GAUCHE	HOMAG	DIAMCD12533501G
1	125	35	30	8X4	35	3+3	4	GAUCHE	HOMAG	DIAMCD12533502G
1	125	46	30	8X4	40.6	3+3	4	GAUCHE	HOMAG	DIAMCD12534604G
1	125	46	30	8X4	40.6	3+3	2.5	GAUCHE	HOMAG	DIAMCD12534603G
1	125	65	30	8X4	40.6	3+3	4	GAUCHE	HOMAG	DIAMCD12536506G
1	125	65	30	8X4	40.6	3+3	2.5	GAUCHE	HOMAG	DIAMCD12536505G
1	80	46	30	8X4	53	3+3	4	DROITE	BIESSE AKRON 400	DIAMCD8034602D
1	80	46	30	8X4	53	3+3	2.5	DROITE	BIESSE AKRON 400	DIAMCD8034601D
1	80	65	30	8X4	53	3+3	2.5	DROITE	BIESSE AKRON 400	DIAMCD8036503D
1	80	65	30	8X4	53	3+3	4	DROITE	BIESSE AKRON 400	DIAMCD8036504D
1	100	46	30	8X4	75	3+3	4	DROITE	BIESSE AKRON 600/800	DIAMCD10034608D
1	100	46	30	8X4	75	3+3	2.5	DROITE	BIESSE AKRON 600/800	DIAMCD10034607D
1	100	65	30	8X4	75	3+3	2.5	DROITE	BIESSE AKRON 600/800	DIAMCD10036505D
1	100	65	30	8X4	75	3+3	4	DROITE	BIESSE AKRON 600/800	DIAMCD10036506D
1	125	35	30	8X4	35	3+3	4	DROITE	HOMAG	DIAMCD12533502D
1	125	35	30	8X4	35	3+3	2.5	DROITE	HOMAG	DIAMCD12533501D
1	125	46	30	8X4	40.6	3+3	2.5	DROITE	HOMAG	DIAMCD12534603D
1	125	46	30	8X4	40.6	3+3	4	DROITE	HOMAG	DIAMCD12534604D
1	125	65	30	8X4	40.6	3+3	4	DROITE	HOMAG	DIAMCD12536506D
1	125	65	30	8X4	40.6	3+3	2.5	DROITE	HOMAG	DIAMCD12536505D

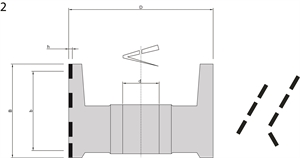

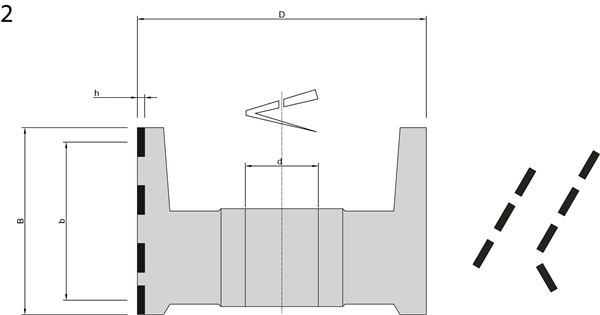

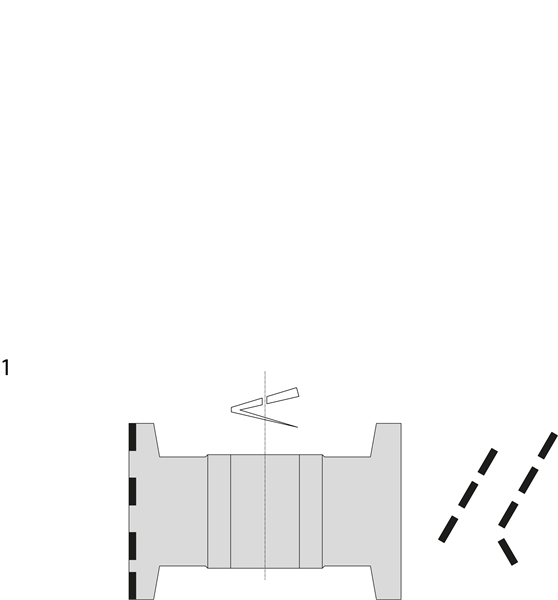

Calibreurs diamant pour plaqueuse de chants asymétriques

(PCDIA-02)

Utilisation pour le dressage et calibrage de panneaux de particules et panneaux MDF sur calibreuse double ou plaqueuses de chants.

Profil	D	H	Al	Clavette	H corps	Z	H diamant	Rotation	Machine	Code
1	60	65	25	8X4	65	2+2	4	GAUCHE	FELDER	DIAMCD6026502G
1	60	65	25	8X4	65	2+2	2.5	GAUCHE	FELDER	DIAMCD6026501G
1	70	55	30	8X4	31	2+2	4	GAUCHE	HOLZ-HER	DIAMCD7025502G
1	70	55	30	8X4	31	2+2	2.5	GAUCHE	HOLZ-HER	DIAMCD7025501G
1	70	65	30	8X4	41	2+2	4	GAUCHE	HOLZ-HER	DIAMCD7026502G
1	70	65	30	8X4	41	2+2	2.5	GAUCHE	HOLZ-HER	DIAMCD7026501G
2	70	48	30	8X4	41	2+2	4	GAUCHE	HOLZ-HER	DIAMCD7024802G
2	70	48	30	8X4	41	2+2	2.5	GAUCHE	HOLZ-HER	DIAMCD7024801G
1	80	55	20	6X3	25	3+3	2.5	GAUCHE	BIESSE AKRON 246	DIAMCD8035501G
1	80	55	20	6X3	25	3+3	4	GAUCHE	BIESSE AKRON 246	DIAMCD8035502G
1	80	65	20	6X3	25	3+3	4	GAUCHE	BIESSE AKRON 246	DIAMCD8036502G
1	80	65	20	6X3	25	3+3	2.5	GAUCHE	BIESSE AKRON 246	DIAMCD8036501G
2	85	65	30	8X4	45	3+3	2.5	GAUCHE	OTT	DIAMCD8536501G
2	85	65	30	8X4	45	3+3	4	GAUCHE	OTT	DIAMCD8536502G
1	100	35	30	8X4	35	3+3	2.5	GAUCHE	IMA-BRANDT	DIAMCD10033501G
1	100	35	30	8X4	35	3+3	4	GAUCHE	IMA-BRANDT	DIAMCD10033502G
1	100	46	30	8X4	25	3+3	4	GAUCHE	HOLZ-HER	DIAMCD10034604G
1	100	46	30	8X4	25	3+3	2.5	GAUCHE	HOLZ-HER	DIAMCD10034603G
1	100	50	20	6X3	25	2+2	4	GAUCHE	CEHISA	DIAMCD10025002G
1	100	50	20	6X3	25	2+2	2.5	GAUCHE	CEHISA	DIAMCD10025001G
1	100	65	30	8X4	25	3+3	2.5	GAUCHE	HOLZ-HER SCM STEFANI	DIAMCD10036501G
1	100	65	30	8X4	25	3+3	4	GAUCHE	HOLZ-HER SCM STEFANI	DIAMCD10036502G
2	100	46	30	8X4	40.6	3+3	2.5	GAUCHE	SCM BIESSE / IMA-BRANDT	DIAMCD10034605G
2	100	46	30	8X4	40.6	3+3	4	GAUCHE	SCM BIESSE / IMA-BRANDT	DIAMCD10034606G
2	100	46	30	8X4	61	3+3	2.5	GAUCHE	HEBROCK	DIAMCD10034601G
2	100	46	30	8X4	61	3+3	4	GAUCHE	HEBROCK	DIAMCD10034602G
2	100	65	30	8X4	40.6	3+3	4	GAUCHE	SCM BIESSE / IMA-BRANDT	DIAMCD10036504G
2	100	65	30	8X4	40.6	3+3	2.5	GAUCHE	SCM BIESSE / IMA-BRANDT	DIAMCD10036503G
1	125	46	30	8X4	40.6	3+3	2.5	GAUCHE	HOMAG	DIAMCD12534601G
1	125	46	30	8X4	40.6	3+3	4	GAUCHE	HOMAG	DIAMCD12534602G
1	125	65	30	8X4	40.6	3+3	2.5	GAUCHE	HOMAG	DIAMCD12536501G
1	125	65	30	8X4	40.6	3+3	4	GAUCHE	HOMAG	DIAMCD12536502G
1	125	65	30	8X4	51	3+3	4	GAUCHE	BIESSE STREAM	DIAMCD12536504G
1	125	65	30	8X4	51	3+3	2.5	GAUCHE	BIESSE STREAM	DIAMCD12536503G
1	100	35	30	8X4	35	3+3	2.5	DROITE	IMA-BRANDT	DIAMCD10033501D
1	100	35	30	8X4	35	3+3	4	DROITE	IMA-BRANDT	DIAMCD10033502D
1	100	46	30	8X4	25	3+3	2.5	DROITE	HOLZ-HER	DIAMCD10034603D
1	100	46	30	8X4	25	3+3	4	DROITE	HOLZ-HER	DIAMCD10034604D
2	100	46	30	8X4	40.6	3+3	2.5	DROITE	SCM BIESSE / IMA-BRANDT	DIAMCD10034605D
2	100	46	30	8X4	40.6	3+3	4	DROITE	SCM BIESSE / IMA-BRANDT	DIAMCD10034606D
2	100	46	30	8X4	61	3+3	4	DROITE	HEBROCK	DIAMCD10034602D
2	100	46	30	8X4	61	3+3	2.5	DROITE	HEBROCK	DIAMCD10034601D
1	125	46	30	8X4	40.6	3+3	2.5	DROITE	HOMAG	DIAMCD12534601D
1	125	46	30	8X4	40.6	3+3	4	DROITE	HOMAG	DIAMCD12534602D
1	60	65	25	8X4	65	2+2	2.5	DROITE	FELDER	DIAMCD6026501D
1	60	65	25	8X4	65	2+2	4	DROITE	FELDER	DIAMCD6026502D
2	70	48	30	8X4	41	2+2	4	DROITE	HOLZ-HER	DIAMCD7024802D
2	70	48	30	8X4	41	2+2	2.5	DROITE	HOLZ-HER	DIAMCD7024801D
1	70	55	30	8X4	31	2+2	2.5	DROITE	HOLZ-HER	DIAMCD7025501D
1	70	55	30	8X4	31	2+2	4	DROITE	HOLZ-HER	DIAMCD7025502D
1	70	65	30	8X4	41	2+2	2.5	DROITE	HOLZ-HER	DIAMCD7026501D
1	70	65	30	8X4	41	2+2	4	DROITE	HOLZ-HER	DIAMCD7026502D
1	80	55	20	6X3	25	3+3	2.5	DROITE	BIESSE AKRON 246	DIAMCD8035501D
1	80	55	20	6X3	25	3+3	4	DROITE	BIESSE AKRON 246	DIAMCD8035502D
1	80	65	20	6X3	25	3+3	4	DROITE	BIESSE AKRON 246	DIAMCD8036502D
1	80	65	20	6X3	25	3+3	2.5	DROITE	BIESSE AKRON 246	DIAMCD8036501D
2	85	65	30	8X4	45	3+3	2.5	DROITE	OTT	DIAMCD8536501D
2	85	65	30	8X4	45	3+3	4	DROITE	OTT	DIAMCD8536502D
1	100	50	20	6X3	25	2+2	4	DROITE	CEHISA	DIAMCD10025002D
1	100	50	20	6X3	25	2+2	2.5	DROITE	CEHISA	DIAMCD10025001D
1	100	65	30	8X4	25	3+3	2.5	DROITE	HOLZ-HER SCM STEFANI	DIAMCD10036501D
1	100	65	30	8X4	25	3+3	4	DROITE	HOLZ-HER SCM STEFANI	DIAMCD10036502D
2	100	65	30	8X4	40.6	3+3	4	DROITE	SCM BIESSE / IMA-BRANDT	DIAMCD10036504D
2	100	65	30	8X4	40.6	3+3	2.5	DROITE	SCM BIESSE / IMA-BRANDT	DIAMCD10036503D
1	125	65	30	8X4	40.6	3+3	2.5	DROITE	HOMAG	DIAMCD12536501D
1	125	65	30	8X4	40.6	3+3	4	DROITE	HOMAG	DIAMCD12536502D
1	125	65	30	8X4	51	3+3	2.5	DROITE	BIESSE STREAM	DIAMCD12536503D
1	125	65	30	8X4	51	3+3	4	DROITE	BIESSE STREAM	DIAMCD12536504D
