CMT ECO range

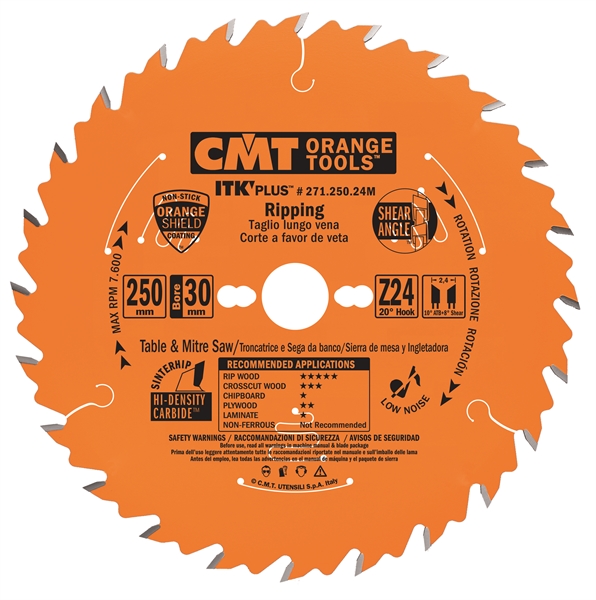

ITK Plus rip and crosscut circular saw blades
(CMT271-2)

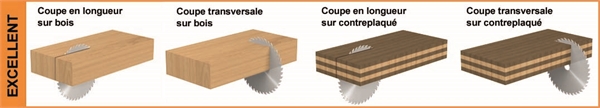

Application : for rip and crosscuts at high-speed rotation. The blade considerably reduces material waste thanks to the thin-kerf design. Particularly suitable for valuable wood.

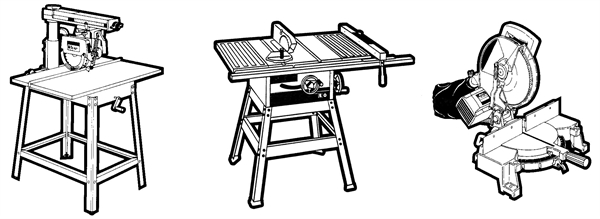

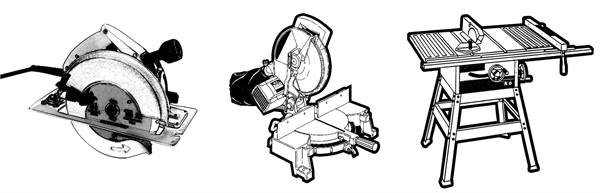

Machines : miter saws, table saws, portable and cordless saws.
Material : soft and hardwood, plywood.

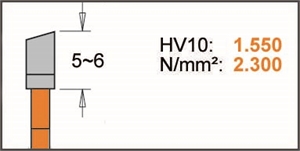

| TECHNICAL DETAILS OF CARBIDE TEETH: | |
|---|---|
| - Teeth height mm : | 5-6 |
| - CHROMIUM ISO grade : | K20 |
| - Hardness (HV10) : | 1.550 |
| - Transverse rupture strength (N/mm2) : | 2.300 |

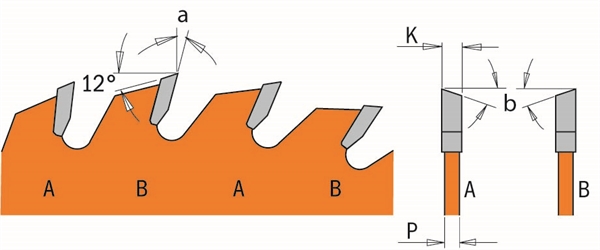

| D | K | P | Z | B | Pin Hole | α | β | Code |
|---|---|---|---|---|---|---|---|---|
| 136 | 1.5 | 1.0 | 18 | 20 (+10) | 20° | 10° ATB + 8° Shear | CMT27113618H | |
| 150 | 1.5 | 1.0 | 24 | 20 (+16) | 18° | 10° ATB + 8° Shear | CMT27115024H | |
| 160 | 1.7 | 1.1 | 24 | 20 (+16) | 2/6/32 | 18° | 10° ATB + 8° Shear | CMT27116024H |
| 165 | 1.7 | 1.1 | 24 | 20 (+15.87) | 2/6/32 | 18° | 10° ATB + 8° Shear | CMT27116524H |
| 165 | 1.7 | 1.1 | 24 | 30 | 2/7/42 | 18° | 10° ATB + 8° Shear | CMT27116524M |
| 184 | 1.7 | 1.1 | 24 | 20 (+16+15.87) | 2/7/42 | 20° | 10° ATB + 8° Shear | CMT27118424H |
| 184 | 1.7 | 1.1 | 24 | 30 | 2/7/42 | 20° | 10° ATB + 8° Shear | CMT27118424M |
| 190 | 1.7 | 1.1 | 24 | 30 (+20+16) | 2/7/42 | 20° | 10° ATB + 8° Shear | CMT27119024M |
| 200 | 1.8 | 1.2 | 36 | 30 | 2/7/42 | 15° | 10° ATB + 8° Shear | CMT27120036M |
| 210 | 1.8 | 1.2 | 36 | 30 (+25) | 2/7/42 | 15° | 10° ATB + 8° Shear | CMT27121036M |
| 216 | 1.8 | 1.2 | 36 | 30 | 2/7/42 | -5° Neg. | 10° ATB + 8° Shear | CMT27121636M |
| 235 | 2.4 | 1.6 | 36 | 30 (+25) | 2/7/42 | 18° | 10° ATB + 8° Shear | CMT27123536M |
| 250 | 2.4 | 1.6 | 42 | 30 | COMBI3 | 18° | 10° ATB + 8° Shear | CMT27125042M |
| 300 | 2.6 | 1.8 | 48 | 30 | COMBI3 | 18° | 10° ATB + 8° Shear | CMT27130048M |

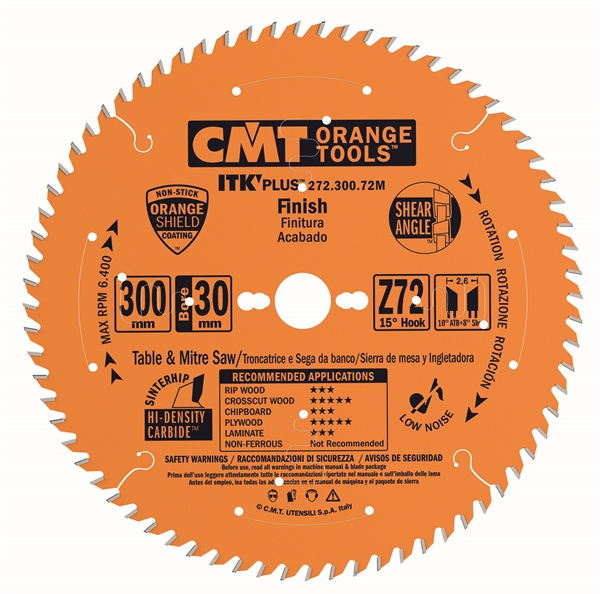

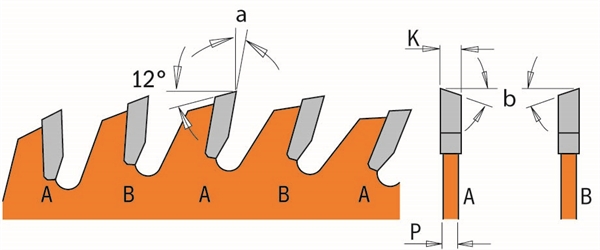

ITK Plus crosscut circular saw blades
(CMT272)

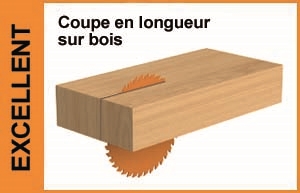

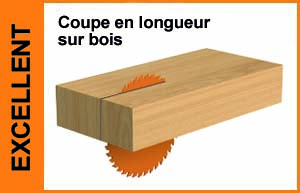

Application : for rip and crosscuts at high-speed rotation. The blade considerably reduces material waste thanks to the thin-kerf design. Particularly suitable for precious wood.
Machines : miter saws, table saws, portable and cordless saws.
Material : soft and hardwood, plywood.

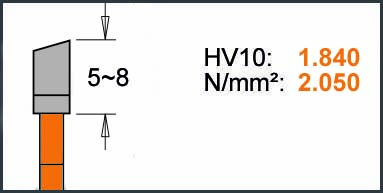

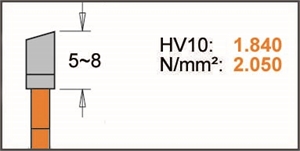

| TECHNICAL DETAILS OF CARBIDE TEETH: | |
|---|---|
| - Teeth height mm : | 5-8 |
| - CHROMIUM ISO grade : | K01 |
| - Hardness (HV10) : | 1.840 |
| - Transverse rupture strength (N/mm2) : | 2.050 |
| D | K | P | Z | B | Pin Hole | α | β | Code |
|---|---|---|---|---|---|---|---|---|
| 136 | 1.5 | 1.0 | 36 | 20 (+10) | 18° | 10° ATB + 8° Shear | CMT27213636H | |
| 150 | 1.5 | 1.0 | 40 | 20 (+16) | 16° | 10° ATB + 8° Shear | CMT27215040H | |
| 160 | 1.7 | 1.1 | 40 | 20 (+16) | 2/6/32 | 16° | 10° ATB + 8° Shear | CMT27216040H |
| 165 | 1.7 | 1.1 | 36 | 20 (+15.87) | 2/6/32 | 20° | 10° ATB + 8° Shear | CMT27216536H |
| 184 | 1.7 | 1.1 | 40 | 20 (+16+15.87) | 2/7/42 | 18° | 10° ATB + 8° Shear | CMT27218440H |
| 184 | 1.7 | 1.1 | 40 | 30 | 2/7/42 | 18° | 10° ATB + 8° Shear | CMT27218440M |
| 190 | 1.7 | 1.1 | 42 | 30 (+20+16) | 2/7/42 | 18° | 10° ATB + 8° Shear | CMT27219042M |
| 200 | 1.8 | 1.2 | 48 | 30 | 2/7/42 | 15° | 10° ATB + 8° Shear | CMT27220048M |
| 210 | 1.8 | 1.2 | 48 | 30 (+25) | 2/7/42 | 15° | 10° ATB + 8° Shear | CMT27221048M |
| 216 | 1.8 | 1.2 | 48 | 30 | 2/7/42 | -5° Neg. | 10° ATB + 8° Shear | CMT27221648M |
| 235 | 2.4 | 1.6 | 48 | 30 (+25) | 2/7/42 | 18° | 10° ATB + 8° Shear | CMT27223548M |
| 250 | 2.4 | 1.6 | 60 | 30 | COMBI3 | 15° | 10° ATB + 8° Shear | CMT27225060M |
| 300 | 2.6 | 1.8 | 72 | 30 | COMBI3 | 15° | 10° ATB + 8° Shear | CMT27230072M |

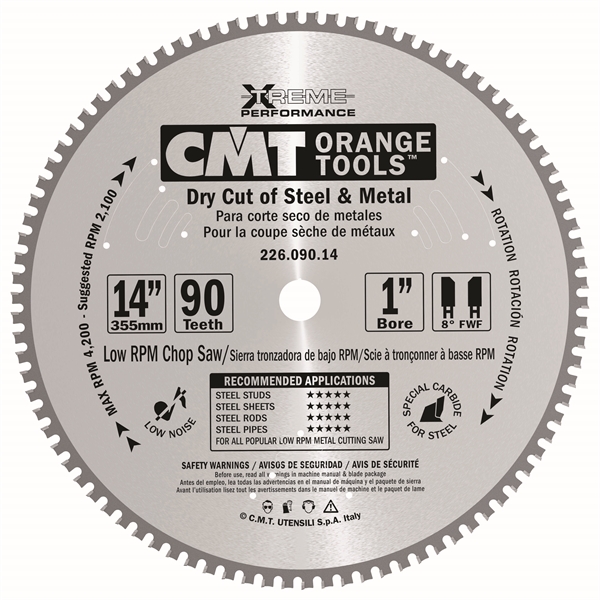

Industrial dry cutter circular saw blades
(CMT226)

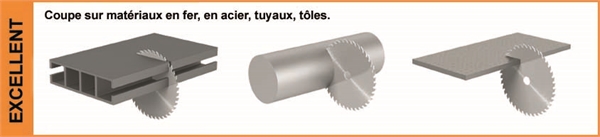

Application : for "dry" crosscutting a variety of materials and ferrous materials such as iron, steel, pvc, compound materials, melamine.
Machines : dry-cutter and mitre saws without lubrication.
Material : for ferrous materials and structural steel.
Warning : not recommended for non-ferrous metals, wood, glass, concrete, plastic.
Please refer to suggested RPM for best results

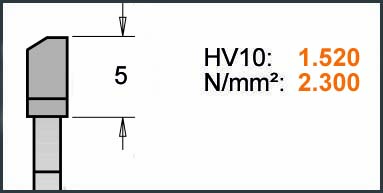

| TECHNICAL DETAILS OF CARBIDE TEETH: | |
|---|---|
| - Teeth height mm : | 5 |
| - ISO grade : | K30 |
| - Hardness (HV10) : | 1.520 |
| - Transverse rupture strength (N/mm2) : | 2.300 |
Saw blades in cardboard box: 226.060.10M / 226.080.12M / 226.090.14M

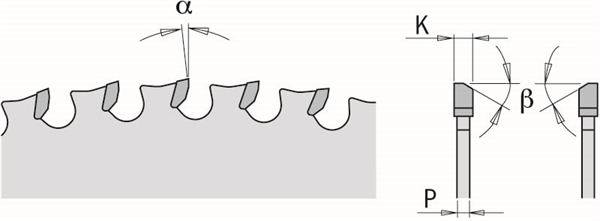

| D | K | P | Z | B | Pin Hole | α | β | Code | |
|---|---|---|---|---|---|---|---|---|---|
| 136.5 | 1.5 | 1.2 | 30 | 10 | 0° | 8° FWF | RPM : 4800 | CMT22603005 | |
| 136.5 | 1.5 | 1.2 | 30 | 20 | 0° | 8° FWF | RPM : 4800 | CMT22603005H | |
| 150 | 1.6 | 1.2 | 32 | 20 | 0° | 8° FWF | RPM : 4400 | CMT22603206H | |
| 160 | 2.0 | 1.6 | 30 | 20 | 2/6/32 | 0° | 8° FWF | RPM : 4100 | CMT22603006H |
| 165 | 1.5 | 1.2 | 36 | 15.87 | 0° | 8° FWF | RPM : 4000 | CMT22603606 | |
| 165 | 1.6 | 1.2 | 36 | 20 | 2/6/32 | 0° | 8° FWF | RPM : 4000 | CMT22603606H |
| 165 | 1.6 | 1.2 | 36 | 30 | 2/7/42 | 0° | 8° FWF | RPM : 4000 | CMT22603606M |
| 184 | 2.0 | 1.6 | 48 | 15.87 | 0° | 8° FWF | RPM : 3600 | CMT22604807 | |
| 190 | 2.0 | 1.6 | 40 | 30 | 2/7/42 | 0° | 8° FWF | RPM : 3500 | CMT22604007M |
| 210 | 2.2 | 1.8 | 48 | 15.87 | 0° | 8° FWF | RPM : 3100 | CMT22604808 | |
| 210 | 2.2 | 1.8 | 48 | 30 | 2/7/42 | 0° | 8° FWF | RPM : 3100 | CMT22604808M |
| 216 | 2.2 | 1.8 | 48 | 30 | 2/7/42 | 0° | 8° FWF | RPM : 3000 | CMT22604709M |
| 235 | 2.2 | 1.8 | 48 | 30 | 2/7/42 | 0° | 8° FWF | RPM : 2800 | CMT22604809M |
| 254 | 2.2 | 1.8 | 48 | 15.87 | 0° | 8° FWF | RPM : 2600 | CMT22604810 | |
| 254 | 2.2 | 1.8 | 60 | 15.87 | 0° | 8° FWF | RPM : 2600 | CMT22606010 | |
| 254 | 2.2 | 1.8 | 60 | 30 | COMBI3 | 0° | 8° FWF | RPM : 2600 | CMT22606010M |
| 305 | 2.2 | 1.8 | 60 | 25.4 | 0° | 8° FWF | RPM : 2100 | CMT22606012 | |
| 305 | 2.2 | 1.8 | 80 | 25.4 | 0° | 8° FWF | RPM : 2100 | CMT22608012 | |
| 305 | 2.2 | 1.8 | 80 | 30 | COMBI3 | 0° | 8° FWF | RPM : 2100 | CMT22608012M |
| 355 | 2.2 | 1.8 | 72 | 25.4 | 0° | 8° FWF | RPM : 1800 | CMT22607214 | |
| 355 | 2.2 | 1.8 | 90 | 25.4 | 0° | 8° FWF | RPM : 1800 | CMT22609014 | |
| 355 | 2.2 | 1.8 | 90 | 30 | COMBI3 | 0° | 8° FWF | RPM : 1800 | CMT22609014M |

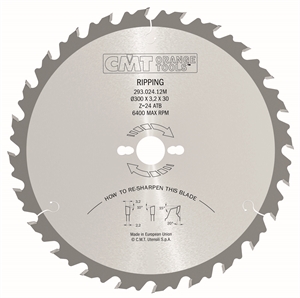

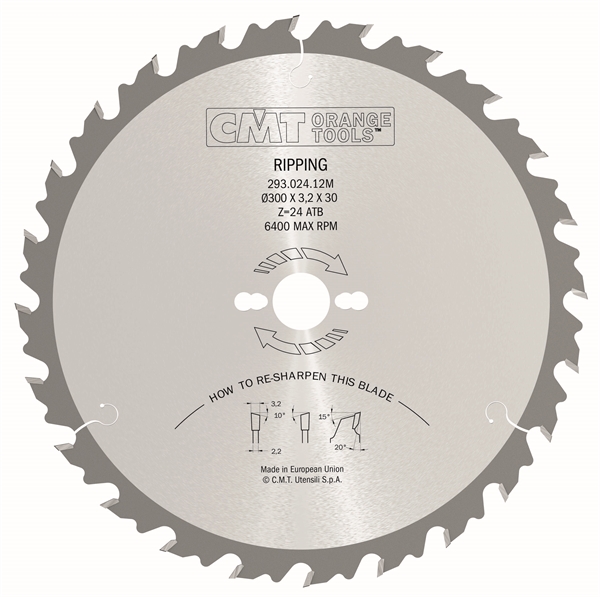

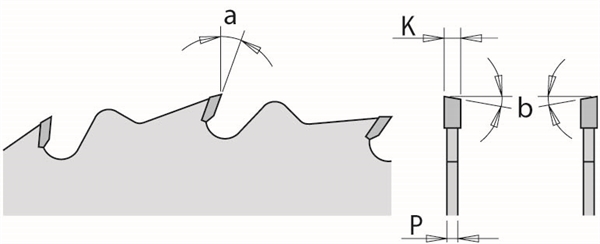

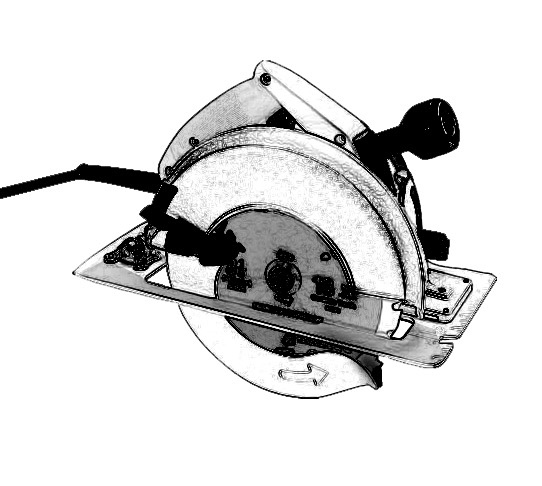

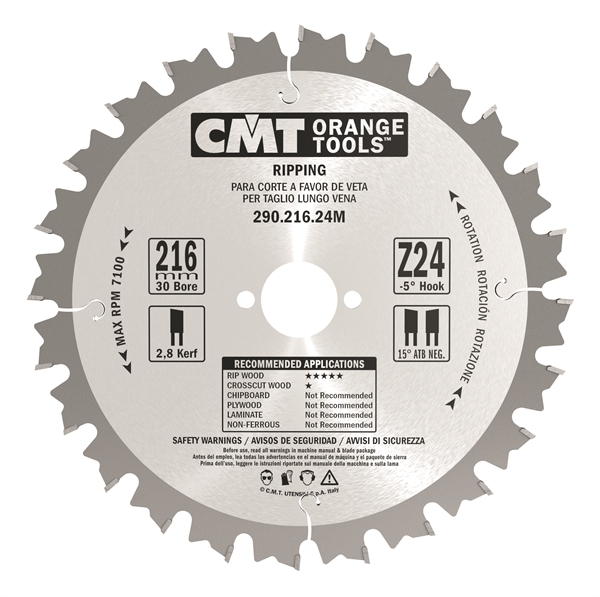

Rip circular saw blades, for portable machines
(CMT290)

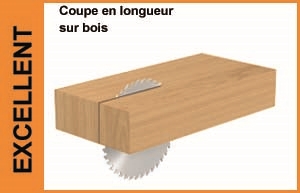

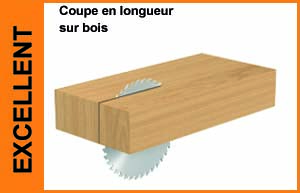

Application : for rip cuts.
Machines : miter saws and portable machines.
Material : soft and hardwood.

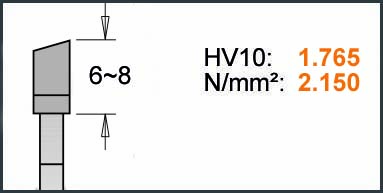

| TECHNICAL DETAILS OF CARBIDE TEETH: | |
|---|---|
| - Teeth height mm : | 6~8 |
| - ISO grade : | K10 |
| - Hardness (HV10) : | 1.765 |
| - Transverse rupture strength (N/mm2) : | 2.150 |
| D | K | P | Z | B | Pin Hole | α | β | Code |
|---|---|---|---|---|---|---|---|---|
| 150 | 2.4 | 1.4 | 12 | 20 | 20° | 10° ATB | CMT29015012H | |
| 160 | 2.2 | 1.6 | 12 | 16 | 20° | 10° ATB | CMT29016012E | |
| 160 | 2.2 | 1.6 | 12 | 20 | 2/6/32 | 20° | 10° ATB | CMT29016012H |
| 180 | 2.6 | 1.6 | 12 | 30 | 2/7/42 | 20° | 10° ATB | CMT29018012M |
| 190 | 2.6 | 1.6 | 12 | 16 | 2/6/32 | 20° | 10° ATB | CMT29019012E |
| 190 | 2.6 | 1.6 | 12 | 20 | 2/6/32 | 20° | 10° ATB | CMT29019012H |
| 190 | 2.6 | 1.6 | 12 | 30 | 2/7/42 | 20° | 10° ATB | CMT29019012M |
| 200 | 2.8 | 1.8 | 24 | 30 | 2/7/42 | 20° | 10° ATB | CMT29020024M |
| 210 | 2.8 | 1.8 | 24 | 30 | 2/7/42 | 20° | 10° ATB | CMT29021024M |
| 216 | 2.8 | 1.8 | 24 | 30 | 2/7/42 | -5° Neg. | 15° ATB | CMT29021624M |
| 220 | 2.8 | 1.8 | 24 | 30 | 2/7/42 | 20° | 10° ATB | CMT29022024M |
| 230 | 2.8 | 1.8 | 24 | 30 | 2/7/42 | 20° | 10° ATB | CMT29023024M |
| 235 | 2.8 | 1.8 | 24 | 25 | 20° | 10° ATB | CMT29023524L | |
| 235 | 2.8 | 1.8 | 24 | 30 | 2/7/42 | 20° | 10° ATB | CMT29023524M |
| 240 | 2.8 | 1.8 | 24 | 30 | 2/7/42 | 20° | 10° ATB | CMT29024024M |
| 260 | 2.8 | 1.8 | 28 | 30 | COMBI3 | 20° | 10°ATB | CMT29026028M |
| 270 | 2.8 | 1.8 | 28 | 30 | 2/7/42 | 20° | 10° ATB | CMT29027028M |

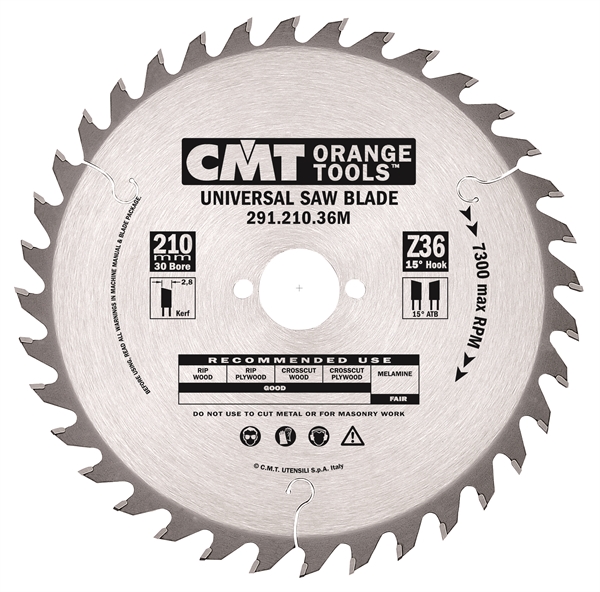

Crosscut circular saw blades, for portable machines
(CMT285-291)
Application : for rip and crosscuts.
Machines : table and miter saws, portable machines.
Material : soft and hardwood, plywood.

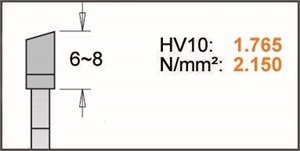

| TECHNICAL DETAILS OF CARBIDE TEETH: | |
|---|---|
| - Teeth height mm : | 6~8 |
| - ISO grade : | K10 |
| - Hardness (HV10) : | 1.765 |
| - Transverse rupture strength (N/mm2) : | 2.150 |

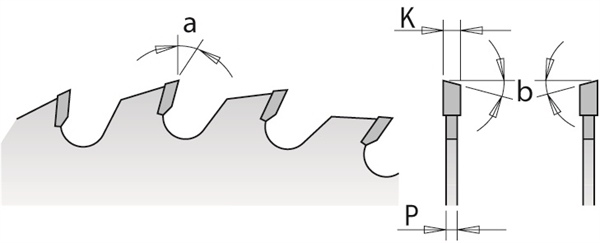

| D | K | P | Z | B | Pin Hole | α | β | Code |
|---|---|---|---|---|---|---|---|---|
| 120 | 1.8 | 1.2 | 18 | 20 | 2/5.5/30 | 15° | 15° ATB | CMT29112018H |
| 125 | 2.4 | 1.4 | 20 | 20 | 15° | 15° ATB | CMT29112520H | |
| 130 | 2.4 | 1.4 | 20 | 20 | 15° | 15° ATB | CMT29113020H | |
| 140 | 2.4 | 1.4 | 20 | 20 | 15° | 15° ATB | CMT29114020H | |
| 150 | 2.4 | 1.4 | 24 | 16 | 15° | 15° ATB | CMT29115024E | |
| 150 | 2.4 | 1.4 | 24 | 20 | 15° | 15° ATB | CMT29115024H | |
| 160 | 2.2 | 1.6 | 24 | 16 | 15° | 15° ATB | CMT29116024E | |
| 160 | 2.2 | 1.6 | 24 | 20 | 2/6/32 | 15° | 15° ATB | CMT29116024H |
| 160 | 2.2 | 1.6 | 24 | 30 | 2/7/42 | 15° | 15° ATB | CMT29116024M |
| 165 | 2.2 | 1.6 | 24 | 20 | 2/6/32 | 15° | 15° ATB | CMT29116524H |
| 165 | 2.6 | 1.6 | 24 | 30 | 2/7/42 | 15° | 15° ATB | CMT29116524M |
| 170 | 2.6 | 1.6 | 24 | 30 | 2/7/42 | 20° | 10° ATB | CMT29117024M |
| 180 | 2.6 | 1.6 | 24 | 20 | 2/6/32 | 20° | 10° ATB | CMT29118024H |
| 180 | 2.6 | 1.6 | 24 | 30 | 2/7/42 | 20° | 10° ATB | CMT29118024M |
| 184 | 2.6 | 1.6 | 24 | 16 | 20° | 10° ATB | CMT29118424E | |
| 184 | 2.6 | 1.6 | 24 | 30 | 20° | 10° ATB | CMT29118424M | |
| 190 | 2.6 | 1.6 | 24 | 16 | 2/6/32 | 20° | 10° ATB | CMT29119024E |
| 190 | 2.6 | 1.6 | 24 | 20 | 2/6/32 | 20° | 10° ATB | CMT29119024H |
| 190 | 2.6 | 1.6 | 24 | 30 | 2/7/42 | 20° | 10° ATB | CMT29119024M |
| 190 | 2.6 | 1.6 | 32 | 20 (Festool ® FF) | 5/7/2.5 | 10° | 10° ATB | CMT29119032FF |
| 200 | 2.8 | 1.8 | 36 | 30 | 2/7/42 | 15° | 15° ATB | CMT29120036M |
| 210 | 2.8 | 1.8 | 36 | 25 | 15° | 15° ATB | CMT29121036L | |
| 210 | 2.8 | 1.8 | 36 | 30 | 2/7/42 | 15° | 15° ATB | CMT29121036M |
| 216 | 2.8 | 1.8 | 48 | 30 | 2/7/42 | -5° Neg. | 15° ATB | CMT29121648M |
| 220 | 2.8 | 1.8 | 36 | 30 | 2/7/42 | 15° | 15° ATB | CMT29122036M |
| 225 | 2.8 | 1.8 | 36 | 30 | 2/7/42 | 20° | 15° ATB | CMT29122536M |
| 230 | 2.8 | 1.8 | 36 | 30 | 2/7/42 | 15° | 15° ATB | CMT29123036M |
| 235 | 2.8 | 1.8 | 36 | 25 | 15° | 15° ATB | CMT29123536L | |
| 235 | 2.8 | 1.8 | 36 | 30 | 2/7/42 | 15° | 15° ATB | CMT29123536M |
| 240 | 2.8 | 1.8 | 36 | 30 | 2/7/42 | 15° | 15° ATB | CMT29124036M |

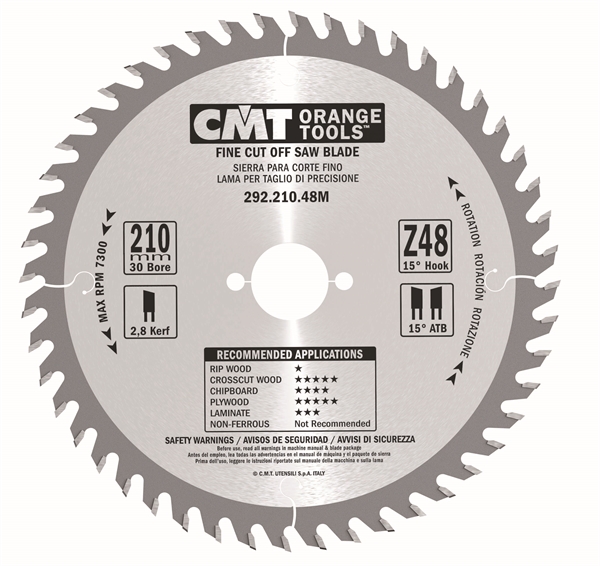

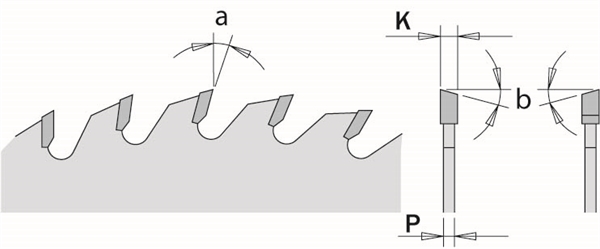

Fine cut-off circular saw blades, for portable machines
(CMT281-285-292)
Application : for crosscuts. Perfect finish.
Machines : table and miter saws, portable machines.
Material : soft, hard and exotic wood, wood-based panels, one-side veneered, paper-based laminated.
| TECHNICAL DETAILS OF CARBIDE TEETH: | |
|---|---|
| - Teeth height mm : | 6~8 |
| - ISO grade : | K10 |
| - Hardness (HV10) : | 1.765 |
| - Transverse rupture strength (N/mm2) : | 2.150 |
| D | K | P | Z | B | Pin Hole | α | β | Code |
|---|---|---|---|---|---|---|---|---|
| 120 | 1.8 | 1.2 | 36 | 20 | 2/5.5/30 | 10° | 15° ATB | CMT29212036H |
| 120 | 1.8 | 1.2 | 40 | 20 | 2/5.5/30 | 10° | 15° ATB | CMT29212040H |
| 125 | 2.4 | 1.4 | 36 | 20 | 15° | 15° ATB | CMT29212536H | |
| 130 | 2.4 | 1.4 | 36 | 20 | 15° | 15° ATB | CMT29213036H | |
| 140 | 2.4 | 1.4 | 36 | 20 | 15° | 15° ATB | CMT29214036H | |
| 150 | 2.4 | 1.4 | 40 | 20 | 15° | 15° ATB | CMT29215040H | |
| 160 | 2.2 | 1.6 | 40 | 16 | 10° | 15° ATB | CMT29216040E | |
| 160 | 2.2 | 1.6 | 40 | 20 | 2/6/32 | 10° | 15° ATB | CMT29216040H |
| 160 | 2.2 | 1.6 | 40 | 30 | 2/7/42 | 10° | 15° ATB | CMT29216040M |
| 160 | 2.2 | 1.6 | 56 | 20 | 2/6/32 | 15° | 15° ATB | CMT29216056H |
| 165 | 2.2 | 1.6 | 40 | 20 | 2/6/32 | 10° | 15° ATB | CMT29216540H |
| 165 | 2.2 | 1.6 | 56 | 20 | 2/6/32 | 15° | 15° ATB | CMT29216556H |
| 165 | 2.6 | 1.6 | 40 | 30 | 2/7/42 | 10° | 15° ATB | CMT29216540M |
| 170 | 2.6 | 1.6 | 40 | 30 | 2/7/42 | 15° | 15° ATB | CMT29217040M |
| 180 | 2.6 | 1.6 | 40 | 20 | 2/6/32 | 15° | 15° ATB | CMT29218040H |
| 180 | 2.6 | 1.6 | 40 | 30 | 2/7/42 | 15° | 15° ATB | CMT29218040M |
| 184 | 2.6 | 1.6 | 40 | 16 | 15° | 15° ATB | CMT29218440E | |
| 184 | 2.6 | 1.6 | 40 | 30 | 15° | 15° ATB | CMT29218440M | |
| 190 | 2.6 | 1.6 | 40 | 20 | 2/6/32 | 15° | 15° ATB | CMT29219040H |
| 190 | 2.6 | 1.6 | 40 | 30 | 2/7/42 | 15° | 15° ATB | CMT29219040M |
| 190 | 2.6 | 1.6 | 64 | 30 | 2/7/42 | 15° | 15° ATB | CMT29219064M |
| 190 | 2.4 | 1.6 | 48 | 20 (Festool® FF) | 5/7/2.5 | 10° | 15° ATB | CMT29219048FF |
| 200 | 2.8 | 1.8 | 48 | 30 | 2/7/42 | 15° | 15° ATB | CMT29220048M |
| 210 | 2.8 | 1.8 | 48 | 25 | 15° | 15° ATB | CMT29221048L | |
| 210 | 2.8 | 1.8 | 48 | 30 | 2/7/42 | 15° | 15° ATB | CMT29221048M |
| 210 | 2.8 | 1.8 | 64 | 30 | 2/7/42 | 15° | 15° ATB | CMT29221064M |
| 216 | 2.8 | 1.8 | 64 | 30 | 2/7/42 | -5° Neg. | 15° ATB | CMT29221664M |
| 216 | 2.8 | 1.8 | 80 | 30 | 2/7/42 | -5° Neg. | 15° ATB | CMT29221680M |
| 220 | 2.8 | 1.8 | 48 | 30 | 2/7/42 | 15° | 15° ATB | CMT29222048M |
| 225 | 2.8 | 1.8 | 48 | 30 | 2/7/42 | 10° | 15° ATB | CMT29222548M |
| 230 | 2.8 | 1.8 | 48 | 30 | 2/7/42 | 15° | 15° ATB | CMT29223048M |
| 230 | 2.8 | 1.8 | 64 | 30 | 2/7/42 + 2/10/60 | 15° | 15° ATB | CMT29223064M |
| 235 | 2.8 | 1.8 | 48 | 25 | 15° | 15° ATB | CMT29223548L | |
| 235 | 2.8 | 1.8 | 48 | 30 | 2/7/42 | 15° | 15° ATB | CMT29223548M |
| 240 | 2.8 | 1.8 | 48 | 30 | 2/7/42 | 15° | 15° ATB | CMT29224048M |
Rip circular saw blades, for portable machines
(CMT285-290-293)
Application : for rip cuts.
Machines : miter saws and portable machines.
Material : soft and hardwood.
| TECHNICAL DETAILS OF CARBIDE TEETH: | |
|---|---|
| - Teeth height mm : | 6~8 |
| - ISO grade : | K10 |
| - Hardness (HV10) : | 1.765 |
| - Transverse rupture strength (N/mm2) : | 2.150 |
| D | K | P | Z | B | Pin Hole | α | β | Code |
|---|---|---|---|---|---|---|---|---|
| 250 | 2.8 | 1.8 | 24 | 30 | COMBI3 | 20° | 10° ATB | CMT29025024M |
| 300 | 3.2 | 2.2 | 24 | 30 | COMBI3 | 20° | 10° ATB | CMT29302412M |
| 300 | 3.2 | 2.2 | 24 | 35 | 20° | 10° ATB | CMT29302412R | |
| 305 | 2.8 | 1.8 | 28 | 30 | 2/10/60 | 20° | 10° ATB | CMT29302822M |
| 315 | 3.2 | 2.2 | 28 | 30 | COMBI3 | 20° | 10° ATB | CMT29302812M |
| 315 | 3.2 | 2.2 | 36 | 30 | 2/10/60 + 2/7/42 | 15° | 5° ATB | CMT28503613M |
| 350 | 3.5 | 2.5 | 28 | 30 | COMBI3 | 20° | 10° ATB | CMT29302814M |
| 350 | 3.5 | 2.5 | 28 | 35 | 20° | 10° ATB | CMT29302814R | |
| 400 | 3.5 | 2.5 | 36 | 30 | COMBI3 | 20° | 10° ATB | CMT28503616M |
| 450 | 3.8 | 2.8 | 36 | 30 | 2/10/60 | 20° | 10° ATB | CMT28503618M |
| 500 | 4.0 | 2.8 | 44 | 30 | COMBI3 | 20° | 10° ATB | CMT28504420M |
