Diamond range

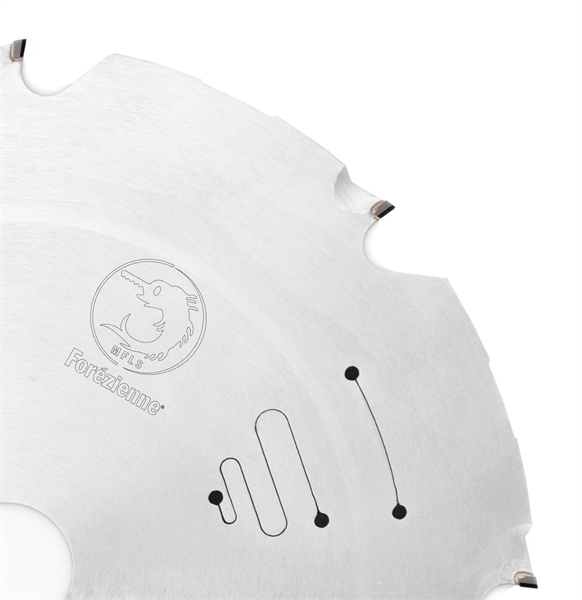

Diamond universal
(CIRC009-07)
Circular saw blade for use with hand held machines.
Height 3mm : Sharpening 4-5 times.
Material : Eternit®, Swisspearl®, Fermacell®, Ivarplank®, HardiePlank®, HardiePanel®, Corian®, Duroplast®, Formica® and panel such as chipboard, MDF, plasterboard and thermoplastic .
wood
| Ø | Kerf | Body | Z | Al | Type | Code | |
|---|---|---|---|---|---|---|---|
| 160 | 2.2 | 1.6 | 8 | 20 | FLAT POS | Height 3mm | DIAM1600801 |
| 160 | 2.2 | 1.6 | 12 | 20 | FLAT POS | Height 3mm | DIAM1601201 |
| 190 | 2.4 | 1.6 | 8 | 30 | FLAT POS | Height 3mm | DIAM1900801 |
| 210 | 2.4 | 1.8 | 12 | 30 | FLAT POS | Height 3mm | DIAM2101201 |
| 260 | 2.4 | 1.8 | 12 | 30 | FLAT POS | Height 3mm | DIAM2601201 |

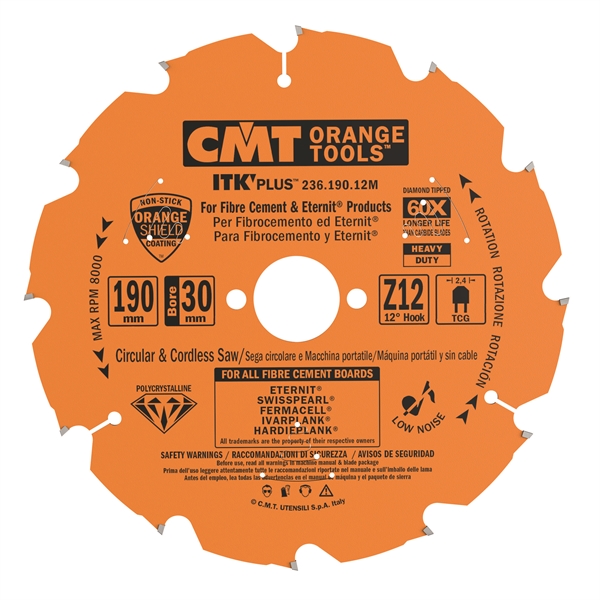

ITK Plus diamond circular saw blades for ultra-hard materials
(CMT236)
Application : for cut on abrasive materials.

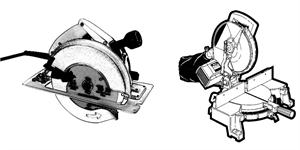

Machines : miter saws, portable and cordless machines.
Material : Eternit®, Swisspearl®, Fermacell®, Ivarplank®, HardiePlank®, HardiePanel®, Corian®, Duroplast®, Formica® and panel such as chipboard, MDF, plasterboard and thermoplastic .
Pin hole COMBI3: 2/7/42 + 2/9.5/46.5 + 2/10/60.

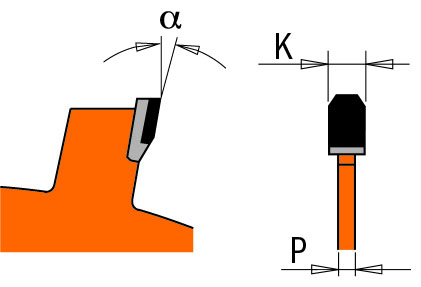

| D | K | P | Z | B | Pin Hole | α | β | Code |
|---|---|---|---|---|---|---|---|---|
| 85 | 1.8 | 1.4 | 6 | 15 | 12° | TCG | CMT23608506G | |
| 160 | 2.4 | 1.8 | 4 | 20 | 2/6/32 | 12° | TCG | CMT23616004H |
| 160 | 2.4 | 1.8 | 10 | 20 | 2/6/32 | 5° | TCG | CMT23616010H |
| 165 | 1.8 | 1.4 | 4 | 20 | 2/6/32 | 12 | TCG | CMT23616504H |
| 165 | 1.8 | 1.4 | 10 | 20 | 2/6/32 | 5 | TCG | CMT23616510H |
| 180 | 2.4 | 1.8 | 4 | 20 | 2/6/32 | 12° | TCG | CMT23618004H |
| 190 | 2.4 | 1.8 | 4 | 30 | 2/7/42 | 12° | TCG | CMT23619004M |
| 190 | 2.4 | 1.8 | 12 | 30 | 2/7/42 | 12° | TCG | CMT23619012M |
| 210 | 2.4 | 1.8 | 12 | 30 | 2/7/42 | 12° | TCG | CMT23621012M |
| 216 | 2.4 | 1.8 | 14 | 30 | 2/7/42 | 12° | TCG | CMT23621614M |
| 230 | 2.4 | 1.8 | 4 | 30 | 2/7/42 | 12° | TCG | CMT23623004M |
| 250 | 2.4 | 1.8 | 16 | 30 | COMBI3 | 12° | TCG | CMT23625016M |
| 300 | 2.4 | 1.8 | 20 | 30 | COMBI3 | 12° | TCG | CMT23630020M |
